Oceanus ROV accessories

MarineNav ROV systems accept a wide range of ROV accessories that increase the functionality of the ROV to perform mission tasks specific to your individual needs. We design and manufacture manipulators, cutting tools, ROV hull crawlers, external camera systems, custom mounting brackets and other ROV attachments. Speak to a MarineNav ROV specialist regarding bespoke ROV accessories designed for your industry's needs.

Oceanus ROV systems support a growing selection of third-party ROV attachments, such as sonar systems and various tracking and positioning systems. Contact a MarineNav ROV specialist for more information. >

Voyis Imaging's Discovery and Discovery Stereo photogrammetry camera systems

Voyis photogrammetry Camera integration

Voyis is rapidly becoming the leading name for photogrammetry. MarineNav can integrate the Discovery and Discover Stereo 4k camera systems as part of your ROV build. High definition full shutter cameras coupled with Nova LED lights allow you to capture crisp, detailed imagery. Adding the Discovery Stereo camera enables you to create 3D photogrammetric models of your assets with the option of recording data at full resolution with a live lower quality feed. Operate the Voyis Stereo with a secondary tether, or upgrade to a fibre optic system for true gigabit transfer speeds and the ability to create 3D models and mapping of your assets/targets on the fly.

Voyis Imaging Inc.

Voyis camera systems are available as an optional upgrade for the Oceanus Pro Classic, P8 Pro and Ultimate ROV systems. Contact MarineNav to discuss ROV compatibility and which camera system is suited for your need.

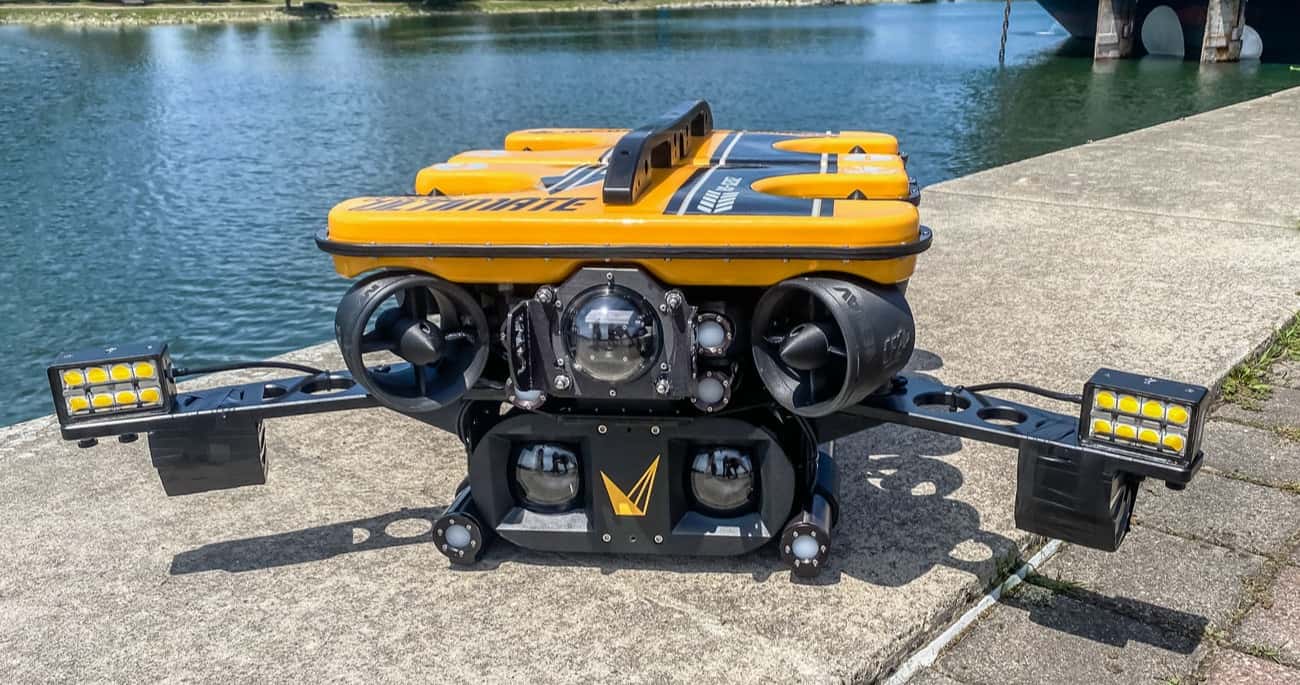

Photo credit Voyis Imaging. Oceanus Ultimate with Voyis Discovery Stereo camera.

Photo credit Voyis Imaging Inc: Pictured is the Oceanus Ultimate ROV with Voyis Discovery 4K stereo camera system.
(The Discovery 4K stereo camera system and the Ultimate ROV accessory skid are sold separately.)

MarineNav's ROV Hand Controller (v3.0)

Surround-view external cameras

This optional ROV enhancement allows users to add up to eight additional cameras fitted to the ROV body. Attach positionable cameras to the sides and rear of your ROV, to provide a greater situational awareness (a 360° view around your ROV) and the ability to view wider areas simultaneously. A live video feed captured by the cameras is displayed in a grid or matrix format, providing views around the ROV to aid in avoiding obstacles to the sides of the ROV or enhance your visual inspection of assets

Available as an optional upgrade for the Oceanus Pro Classic, P8 Pro and Ultimate ROV systems.

MarineNav Designed, Engineered and Manufactured In-House, In Canada
MarineNav offers both single-axis and rotating manipulators.

Manipulator arms & head attachments

Ideal for reaching inaccessible areas to grasp and move objects MarineNav designs and manufactures two manipulator arms. Choose from single-axis manipulators or select a dual-axis manipulator with full 360° rotation. MarineNav’s manipulators provide precise control and are fully compatible with our Oceanus class ROVs. Simple plug-and-play functionality provides control of manipulators through our topside software user interface and connected Oceanus hand-held controller.

Enquire about made-to-order manipulator attachments.

All MarineNav products are designed, manufactured, and assembled at our facility on Panmure Island, Prince Edward Island, Canada.

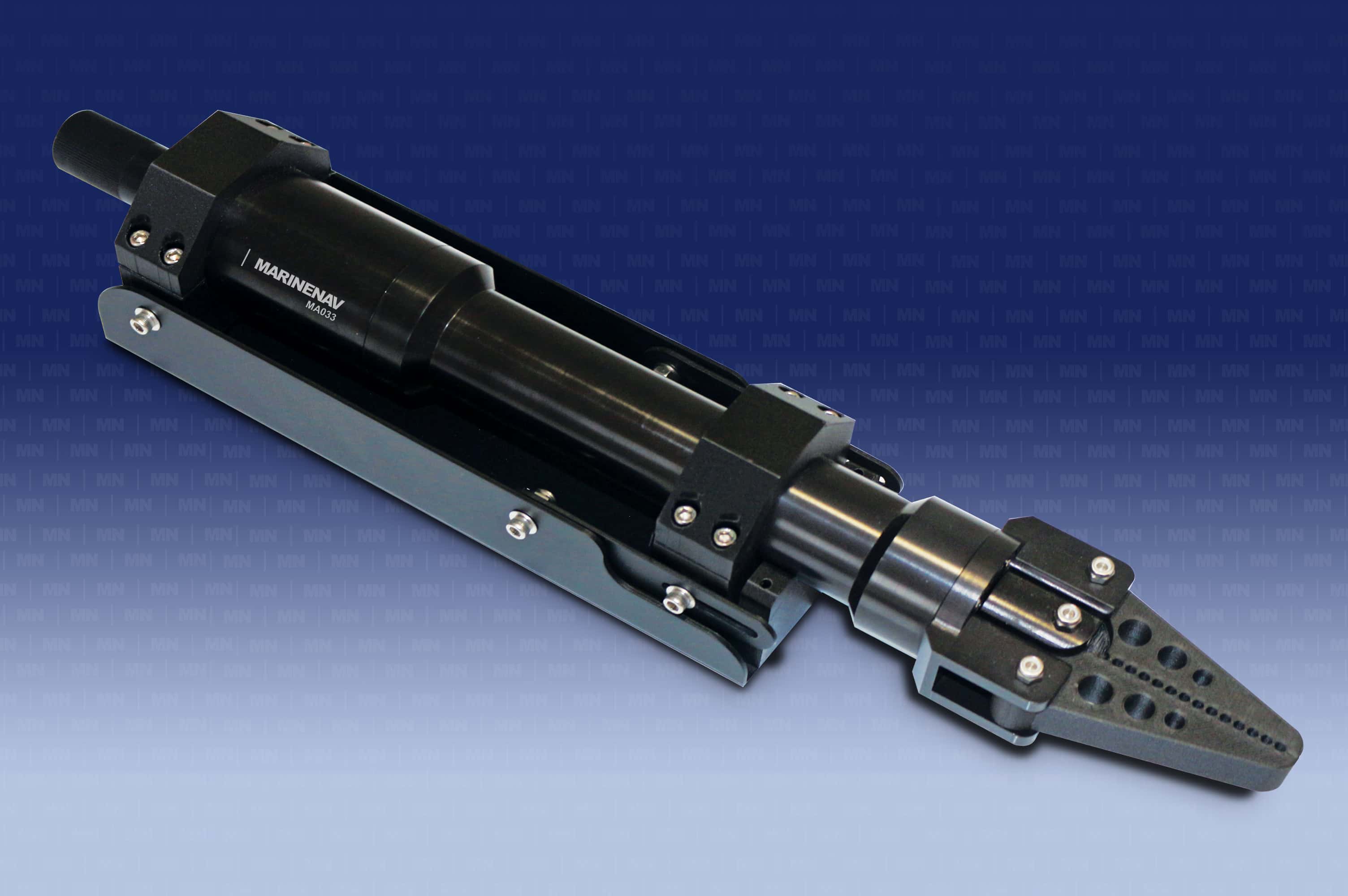

Single Axis manipulator with standard pincer head attachment
Single-axis manipulator arm

MarineNav’s ROV single-axis manipulator is an essential addition to increasing the functionality of your ROV, providing power and precision to perform gripping and recovery maneuvers to a depth of 300 meters. Download specifications >

Rotating Manipulator with four quick-change attachment heads.
Rotating manipulator arm with interchangeable heads

Our dual-axis manipulator, with four swappable unique jaw head attachments, features jaw heads manufactured from carbon fibre-reinforced composite material all designed to work with the manipulator’s open and close motions and 360º continuous rotational movement. Download specifications >

MarineNav's Rotating manipulator with cutting head attachment

Rotating manipulator cutting tool head

Constructed of carbon fibre-filled nylon and durable marine-grade acetal, the cutting tool head attachment is designed to accommodate a variety of 3" diameter blades allowing users to cut through a variety of materials including rope of up to 2" diameter. The serrated mandible firmly holds material in place and the closing action of the cutting blade controls the depth of cut. A grooved channel in the mandible ensures cutting blade will not damage the cutting tool, and a protective cutting blade shield protects the ROV from flying debris.

All products are designed, manufactured, and assembled at our facility on PEI, Canada.

DOWNLOAD PDF  >
MarineNav's ROV Hand Controller (v3.0)

Oceanus hANDheld CONTROLLER (V3.0)

The Oceanus v3.0 joystick/hand-held controller has been specifically designed for use with MarineNav’s ROV systems outfitted with a rotating manipulator attachment. The v3.0 hand-held controller features the same three-axis hall-effect joystick found in our other hand controllers and an expanded ROV command button configuration that provides pilots access to more ROV functions. An adjacent thumbwheel on the primary control panel enables pilots access to the ROV depth control without the need to reposition their hands.

An Oceanus joystick/hand-held controller (v3.0) is included with the Oceanus Mini, Pro and P8 Pro ROV systems and is available as an optional system upgrade for the Oceanus Mini-Lite ROV system.

We design, manufacture and assemble all products at our facility in PEI, Canada.

FIBRE OPTIC  communications & TETHER

Optional upgrade available for the Oceanus Pro Classic, P8 Pro, and Ultimate ROV systems

Upgrade by adding fibre optic communications to your Oceanus Pro Classic, P8 Pro or Ultimate ROV system to utilise our fibre optic tether for gigabyte Ethernet transfer speeds. Fibre optic tether is ideal when using ROV accessories that generate large amounts of data. You can use over 400m of fibre optic tether without an optional battery supply to the ROV. Battery packs are a requirement when operating on tether lengths of 500m to 4km. Standard fibre optic tether measures 11mm in diameter and carries data over fibre optic and power over copper. Slim fibre optic tether measures less than 6mm in diameter and transfers data only. An optional ROV battery pack is required when using slim tether. Contact MarineNav for more information >

Neutrally buoyant rOV Tether

MarineNav ROV systems are rated to a maximum standard depth, but tether segments can be purchased at greater lengths. Single cable segments are available to a maximum size of 500 meters. The maximum length when joining two cable segments together is 450 meters. The maximum length when joining three cable segments together is 400 meters.

DOWNLOAD PDF >

Tether deployment Systems

MarineNav produces Tether Deployment Systems capable of storing up to 600m of ROV tether. All Tether Deployment Systems (TDS) products provide controlled deployment and retrieval of ROV tether minimizing the risk of entanglements or damage. TDS products are easily transported, the larger 600m self-contained TDS case design features built-in wheels.

DOWNLOAD PDF >
Detail of potted head pin connectors.

MarineNav ROV systems are rated to a maximum standard depth of 300 meters, but tether segments can be purchased at greater lengths. Single cable segments are available to a maximum length of 500 meters.

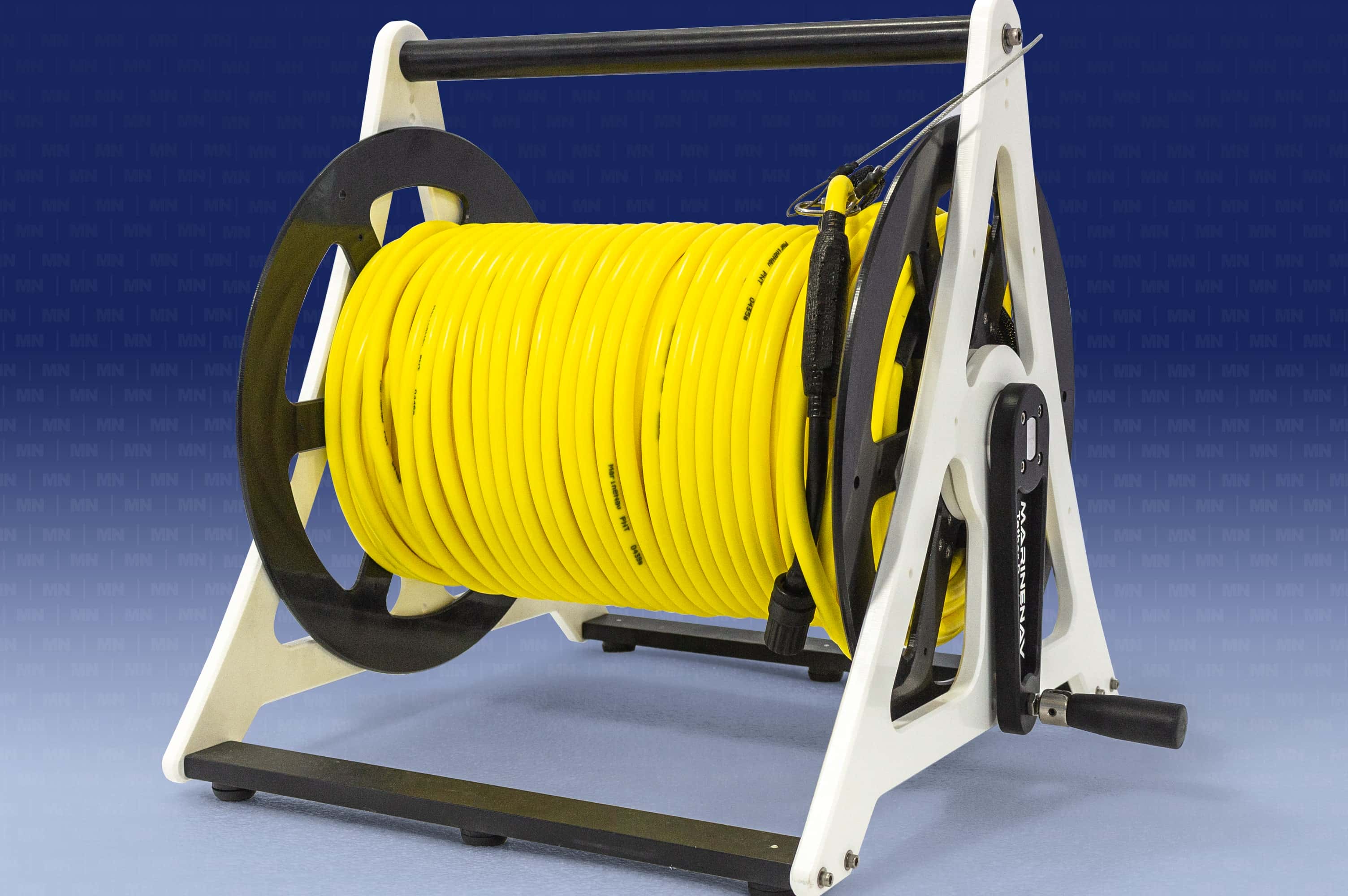

Standard Tether Deployment System. Provides easy deployment and retrieval of tether.

The MarineNav standard Tether Deployment System is a portable tether management reel capable of controlled deployment and retrieval of tether lengths of up to 180m (590 ft).

Mid-sized Tether Deployment system for larger spools of tether. A built in roller system deploys and retrieves tether minimizing risk of tangles and knotting.

The MarineNav mid-size Tether Deployment System can store 350m (1148 ft) of ROV tether on its reel. A redesigned tether deployment roller mechanism ensures smoother deployment and retrieval of the ROV tether.

MarineNav's large Tether Deployment System can hold up to 600 m of ROV tether. Cases are self contained with detachable hand crank and easy to transport built-in wheels and case handles.

The MarineNav large Tether Deployment System is a wheeled self-contained tether management reel capable of controlled deployment and retrieval of tether lengths of up to 600m (1969 ft).

Miscellaneous rov accessories

Protect your ROV investment with these essential accessories.

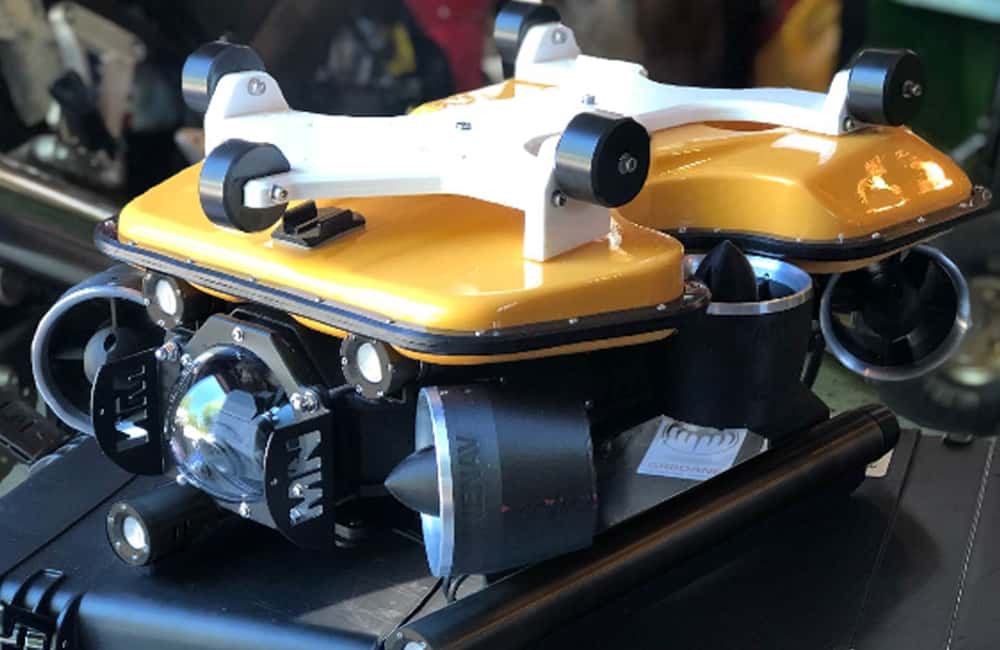

HC2 Hull Crawler allows ROV to glide effortless against a vessel hull eliminating excessive ROV movement providing controlled visual inspections.
Hull Crawlers

Mounting to the float block, MarineNav’s Hull Crawler positions the ROV against a vessel’s hull or other smooth surfaces to create a secure connection allowing for improved ease of inspection. This device increases the pilots’ ability to maintain position and safely navigate a vessel’s hull.

Watch the demonstration video >

DOWNLOAD PDF >
Installation of thruster guards minimizes potential damage as the guards shield the thrusters from large pieces of debris being drawn in to the rotating blades as the ROV is in motion.
Thruster Guards

Designed by MarineNav and manufactured on-site, the Oceanus thruster guard minimizes potential damage when foreign debris becomes entangled in the ROV thruster propellers. The thruster guard is constructed from marine-grade materials and is designed to fit over the thruster assembly without affecting propeller motion and is locked in place by four threaded bolts and fasteners. Installation is simple, requiring a minimum of tools and time.

DOWNLOAD PDF >
Oceanus ROV Gaff Pole is indispensable when retrieving ghost gear, lost mooring chain or underwater cable.
ROV Gaff Hook

Compatible with Pro and Ultimate class series ROV systems, the Oceanus ROV Gaff Pole is indispensable when retrieving ghost gear, lost mooring chain or underwater cable.
• Manufactured from aluminum and marine-grade materials.
• Weighs 1.63 kg (3.6 Lb).
• Locking mechanism keeps snagged gear clear of ROV thruster intake.
• Extra long arm and buoyancy chamber offset the weight of snagged gear.
• 2-year limited warranty*

DOWNLOAD PDF >
MarineNav can design and manufacture bespoke mounts for external cameras, lights and sonar components.
External ROV Mount Brackets

MarineNav designs and manufactures a variety of external ROV mount brackets for third-party accessories such as camera systems, lights, sonar and DVL systems. Contact us regarding bespoke bracket solutions. Our design team will work with you to develop design solutions that provide a secure connection of your third-party accessory to our Oceanus ROV platform.

CONTACT US >

Additional MarineNav ROV attachments

  • Stainless ROV dockside deployment and recovery hook
    MarineNav's lightweight ROV recovery gaff with a large hook is designed specifically to recover an ROV by reaching over the side of a vessel or dock to snag an ROV tether.
  • ROV skid feet with built-in wheels
    Replace your ROV's existing skids with this ROV accessory. ROV skid feet with built-in wheels allow your ROV to glide effortlessly against a smooth surface. Minimize contact friction, and minimize potential ROV damage.
  • Carabiner jaw head
    An attachment designed for ghost gear retrieval. Manufactured as a manipulator attachment, the jaw head firmly holds a carabiner and a length of rope as you use your ROV to lock on to your target. Once the carabiner is attached to your target, open the ROV manipulator jaws to release and retrieve your target by pulling in the attached rope.  Please specify between single-axis or 360-degree rotating manipulators when ordering.
  • MarineNav ROV accessory kit case
    A ruggedized IP-rated case built to order that includes an ROV tool kit for essential on-site ROV maintenance. Bespoke foam inset designed to carry your ROV add-ons such as extra propellers, wireless keyboard or joystick. Compact and easily transported by a single person.
  • Externally mounted cameras and camera mounts
    Contact us for available options for external mount cameras and bespoke camera mounts.
  • Externally mounted lights
    MarineNav designs and builds bespoke lighting grids that provide extra illumination for dives at greater depths. Contact us and let us develop a customized lighting solution for you.
  • Mounting brackets
    MarineNav designs and manufactures a variety of bespoke mount brackets for third-party ROV accessories such as sonar, USDL and metal thickness sensors.
MarineNav ROV systems can be accessorized with a range of third-party manufactured sonar systems.

Third-party rov accessories

Oceanus ROV systems accept an increasing variety of popular third-party ROV accessories. Our ROVs feature built-in AUX ports that allow the configuration of multiple accessories (dependent upon the class of Oceanus ROV). MarineNav's Flight Control System software works seamlessly with many popular third-party accessories. Contact us to discuss if your third-party ROV accessory is supported by our ROV systems.

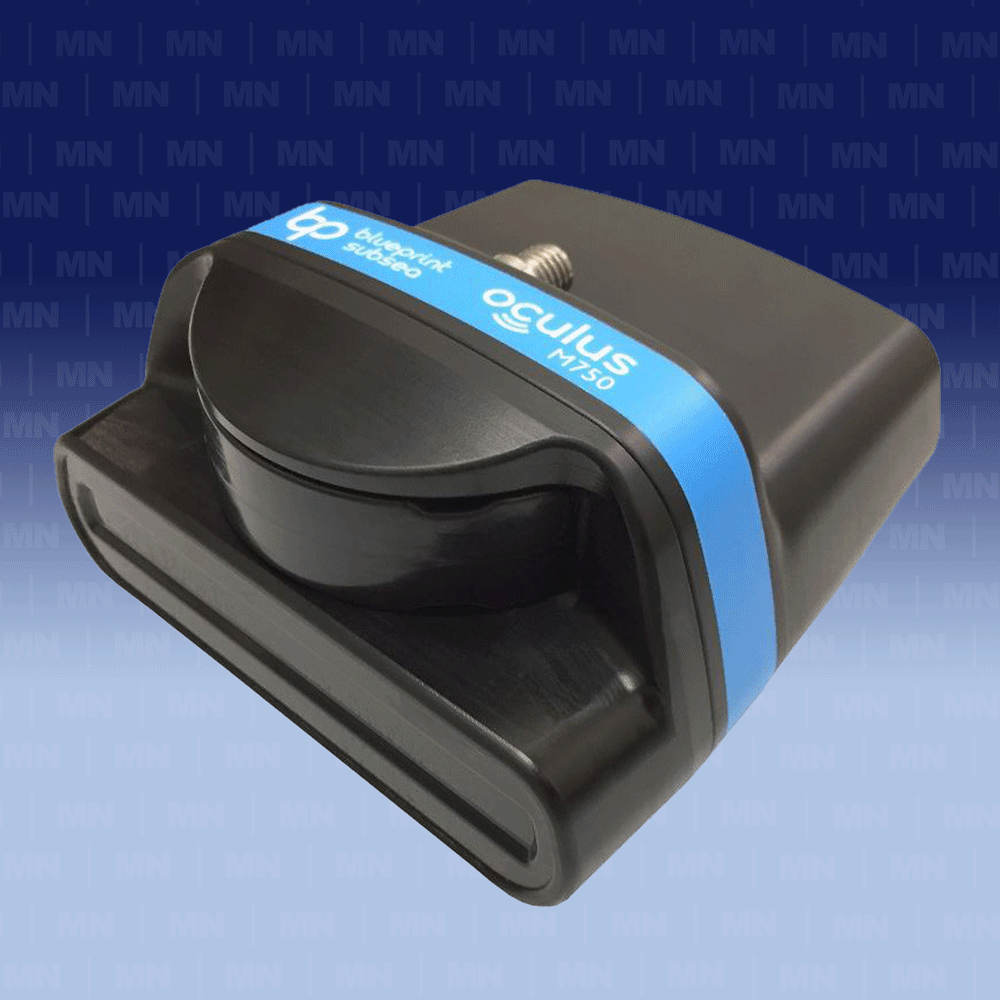

Animation of popular third-party sonar systems we've incorporated with our ROVs
Sonar systems

Accessorize your ROV with sophisticated sonar systems to optimize ROV functionality in low-visibility situations. View Sonar imaging through the topside control case’s video display monitor, with the option to record streaming data for future playback and analysis.

MarineNav supports many popular brands of third-party sonar systems, including popular models from globally recognized manufacturers Tritech and Blueprint Subsea. Check ROV specifications for compatibility.

Contact MarineNav for more information. >

TRITECH IMAGING SONARS > BLUEPRINT SUBSEA OCULUS >

Featured sonar systems

  • Tritech Gemini 720im multibeam sonar
    The Gemini 720im fuses Tritech’s Gemini multi-beam technology with Tritech’s Micron technology to create the world’s smallest multi-beam imaging sonar.
  • Tritech Micron DST
    The Tritech Micron Sonar is the smallest digital CHIRP sonar in the world and is ideal for small ROVs as a first-rate obstacle avoidance sonar in miniature form.
  • Tritech Gemini 720ik
    The Gemini 720ik is a real-time, high-frequency multi-beam imaging sonar. Utilizing Tritech’s advanced processing electronics, at the 1m range, the sonar offers a world-class 97Hz update rate to produce high-quality, video-like imagery.
  • Blueprint Subsea Oculus
    The Blueprint Subsea Oculus is a real-time, high-frequency multi-beam imaging sonar system. At the 1m range, the sonar offers a world-class 97Hz update rate to produce high-quality, video-like imagery.
  • Alternate sonar systems
    Contact a MarineNav ROV specialist regarding any other sonar system you may want to incorporate with one of our ROV systems. Whenever possible, our ROV specialists will work with you to accessorize your ROV purchase with the third-party sonar system of your choosing.

Metal thickness gauge

Measure metal thickness even through coatings with ultrasonic metal thickness gauges. The probe does not need to touch the surface under test, as the metal thickness gauge captures reading measurements through 5 mm (0.2 inches) of water. Metal thickness probe orientation does not influence gauge readings. Contact MarineNav for more Information >

VIEW ROV FITMENT FORM >

Tracking & positioning systems

Underwater searches and surveys often require precise positioning of the ROV to be known so that observations can be geo-referenced on future dive missions. MarineNav supports several acoustic and tether-based position-tracking systems.

CONTACT US >

Customize your ROV with additional third-party ROV accessories

  • 5-axis manipulator arm
    Complex manipulators for complex tasks. Precision manipulator control and unparalleled accessibility when performing underwater missions
  • Cavitation cleaners
    Cavitation cleaner-fitted ROVs perform efficient bio-foul removal that typically requires expensive dive teams.
  • Laser spot devices
    Accessorize your ROV with single or multipoint lasers for scale, reference or distance.

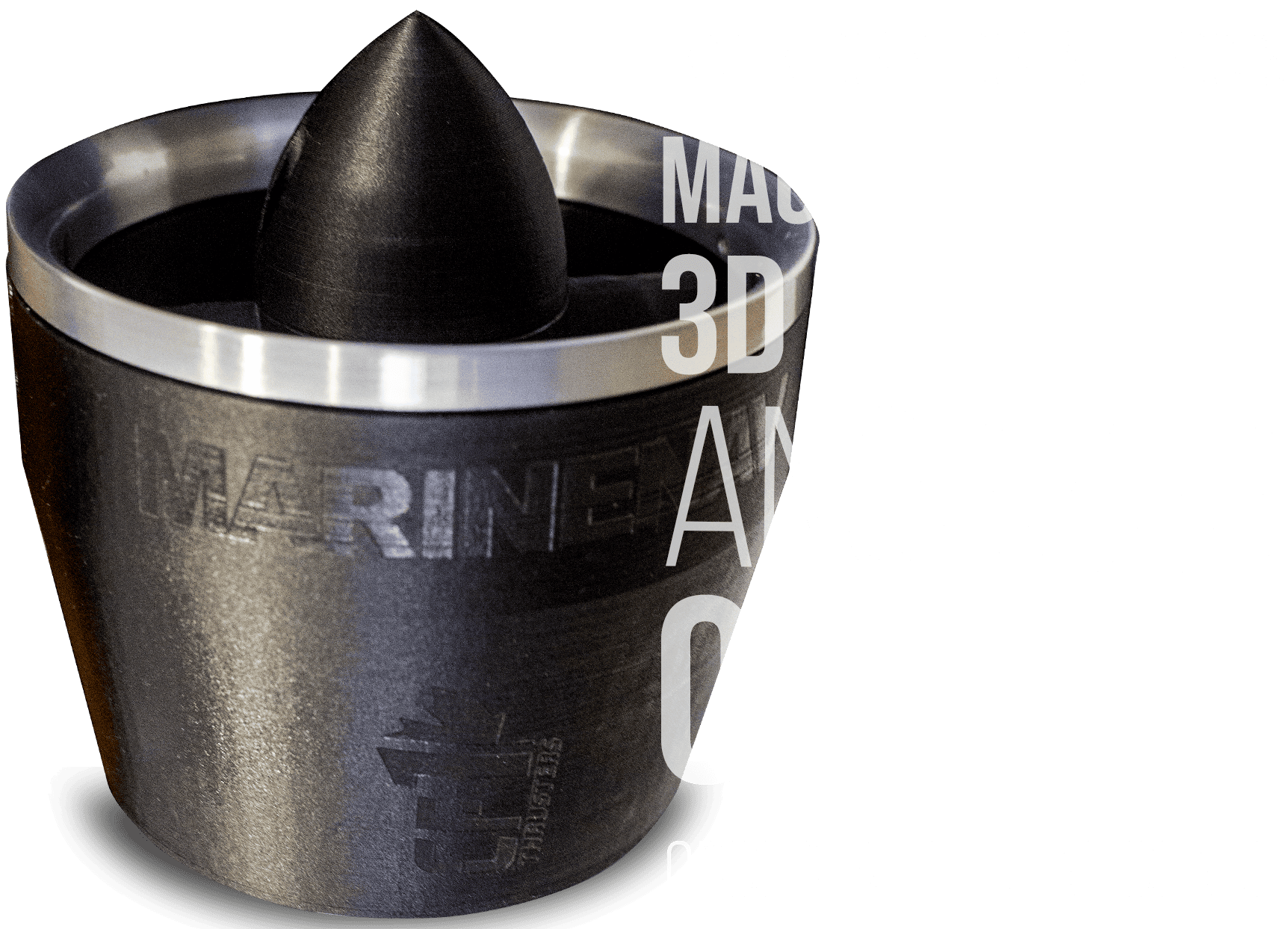

We have an inventory of ROV replacement parts on hand thanks to our in-house anodizing and 3D printing capabilities.

ROV replacement
parts

With all of our ROV systems designed and manufactured on-site, MarineNav can supply our distribution network and ROV customers with an extensive inventory of ROV replacement parts. Easily replace many ROV replacement parts with a minimum amount of time and with a minimum number of tools. Contact MarineNav's service department. Our knowledgeable ROV technicians are available to offer support for any ROV part replacement.

Download a current list of available ROV replacement parts, or contact a MarineNav representative if a bespoke replacement part is required.

DOWNLOAD PDF >

Terms and conditions

* The three-year limited warranty extension is available when an eligible MarineNav Oceanus ROV system is registered within the first year of purchase. For warranty to remain valid, all scheduled ROV maintenance must be adhered to according to manufacturers guidelines. At the end of the regular two-year limited warranty period, a third-year extension is provided to customers who adhere to all regimented ROV maintenance. Limited warranty restrictions apply;

a) MarineNav Ltd warrants that tether supplied with ROV systems or supplied separately will be free from defects in materials and workmanship under normal use and service for a period of ninety (90) days from the date of shipment.

b)  MarineNav Ltd warrants that tether whips that were provided as part of an ROV system at time of original shipment will be free from defects in materials and workmanship under normal use and service for a period of six (6) months from date of shipment.

c) MarineNav Ltd warrants that thruster motors that were provided as part of an ROV system at the time of original shipment will be free from defects in materials and workmanship under normal use and service for a period of one (1) year from the date of shipment. This does not include wearable parts such as propellers, which are considered a consumable item. Tampering, misuse and regular wear are not covered by warranties.

d) MarineNav Ltd warrants that the ROV float block as part of an ROV system at the time of original shipment will be free from defects in materials and workmanship under normal use and service for a period of three (3) months. The three-month warranty does not cover normal wear such as scuffs, scrapes indentations, or other damage to the float block caused by external environmental factors.

e) MarineNav Ltd warranties exclude corrosion that may occur on ROV metallic parts caused in part by improper cleaning and storage of ROV after each mission. Refer to your owner’s manual for proper cleaning and maintenance of your ROV system.

× While we strive to ensure the accuracy of all items and descriptions in this document, this is not always possible. Specifications, options, pricing and availability are subject to change without notice. Errors and omissions excepted. We reserve the right to limit quantities.
