Oceanus Mini Lite ROV System

The Oceanus Mini-Lite system includes the Mini ROV and Mini-Lite topside control case with removable PC tablet

Oceanus Mini-Lite ROV with topside control unit and built-in removable tablet.

All transport cases, including the topside control case, are manufactured in Canada. They are IP rated for use in marine settings

IP-rated hard-shell transport cases are included with the topside and Mini-Lite ROV.

Size comparison of the Oceanus Mini ROV system with closed topside control case. Tether is sold separately

Size comparison between the Oceanus Mini-Lite ROV and compact topside ROV control system.

The topside features a removable tablet with 64GB SSD

A removable PC tablet acts as the operational control system for the ROV and is mounted on a quick-release swivel arm.

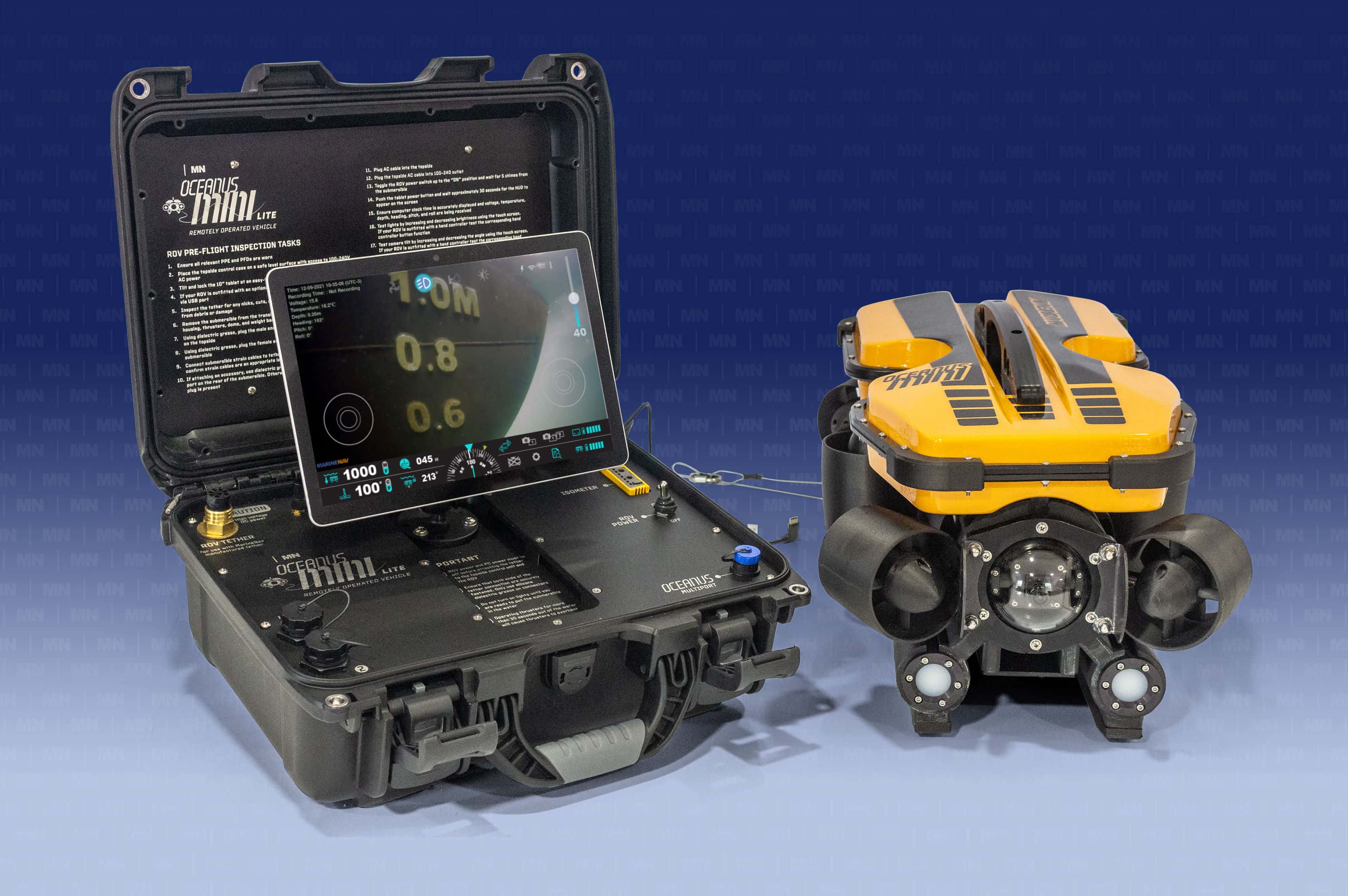

A touch-sensitive removable tablet runs MarineNav FCS-Lite software

Our Flight Control System software displays crucial ROV readings and streaming video. Control your ROV through sensor pads displayed on a 10-inch PC tablet.

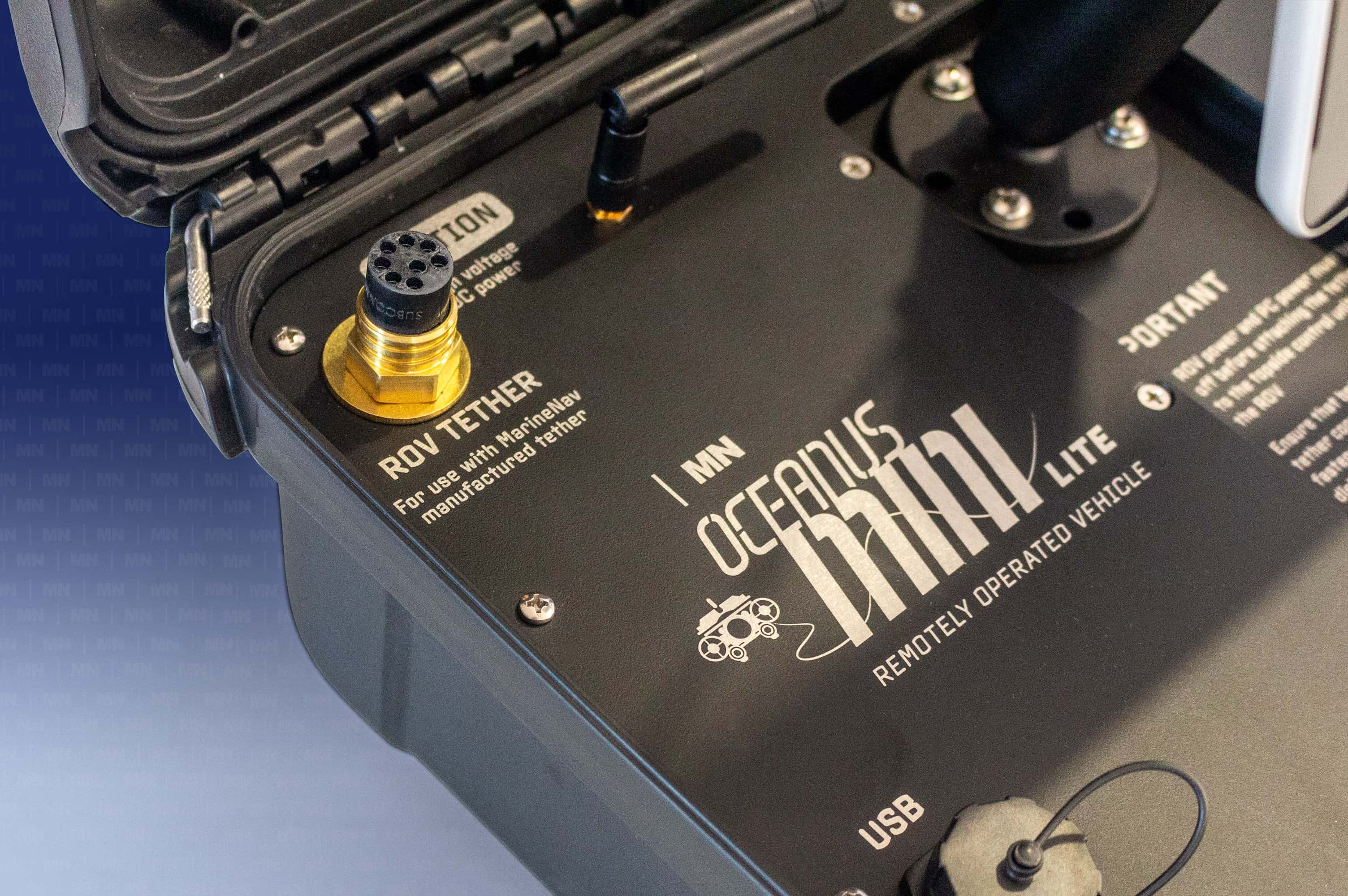

The Oceanus Mini-Lite topside case is the self-contained operation hub of the ROV system

The Mini-Lite ROV topside control case is loaded with high-end features found in our more expensive ROV systems.

With an approximate dry weight of 10.8 kg this compact ROV can fit in a 12-inch diameter pipe, making it ideal for confined entry areas, and pipe and tank inspections, as well as general use

Six vectorized thruster design provides power and stability with a top speed of up to 4 knots.

The ROV measures 521mm in length and weighs 10.8 kg.

ROV attachments are easily fitted to a bottom mount board. Pre-drilled array provides numerous options in mounting attachments

Constructed of marine-grade materials. The ROV undercarriage includes a universal mount plate for ROV accessories.

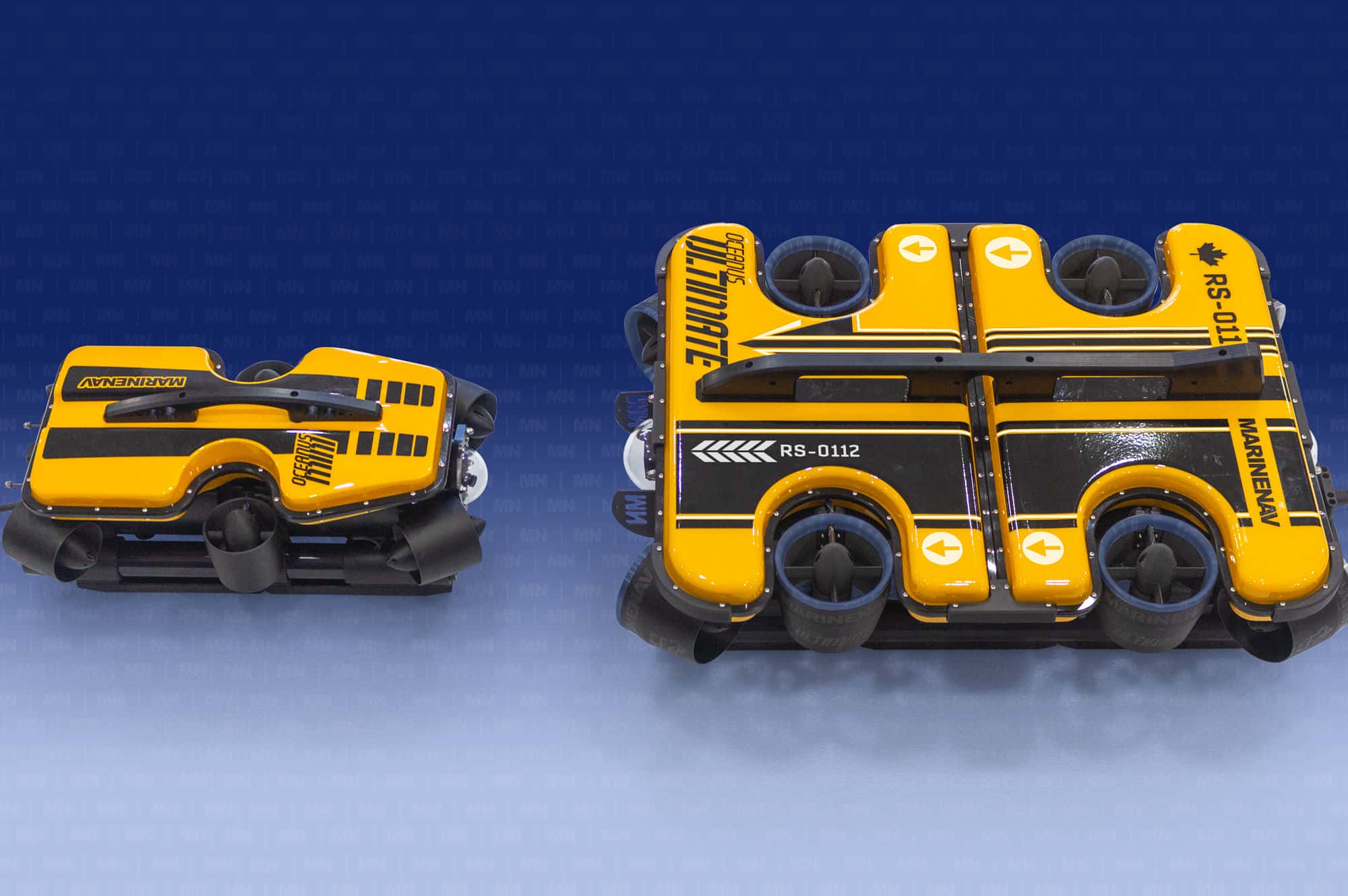

Size comparison between the Oceanus Mini and Oceanus Ultimate ROV

The Oceanus Mini and Ultimate ROV side-by-side in a size comparison.

Upgrade your Mini-Lite system with a Oceanus Hand controller (v3.0) with mounting bracket

Upgrade your Mini-Lite ROV system with an Oceanus hand-held controller (v3.0) and positionable tablet mount swivel arm.

Wireless communication between topside and tablet of 20m

Fully integrated with the topside FCS software, the hand-held controller (v3.0) features a hall-effect joystick and sixteen ROV function command buttons.

An entry-level ROV system... with room to grow

The Oceanus Mini-Lite ROV system is independently certified to operate to a maximum standard depth of 305 m (1000 ft). This feature-rich inspection class ROV is ideal for vessel and infrastructure inspection, locating and assisting ghost gear retrieval or visually documenting evidence. This user-friendly ROV system is the choice of novice and experienced pilots and features an extremely compact design for ease of transport.

The Oceanus Mini-Lite topside is protected by a one-year limited warranty extended to all components manufactured by MarineNav. The removable tablet is a third-party component (warranty coverage is provided through the third-party manufacturer). A two-year limited warranty protects the MarineNav Mini ROV. Conditions apply, contact MarineNav for full details.

The Oceanus Mini-Lite ROV system includes these features

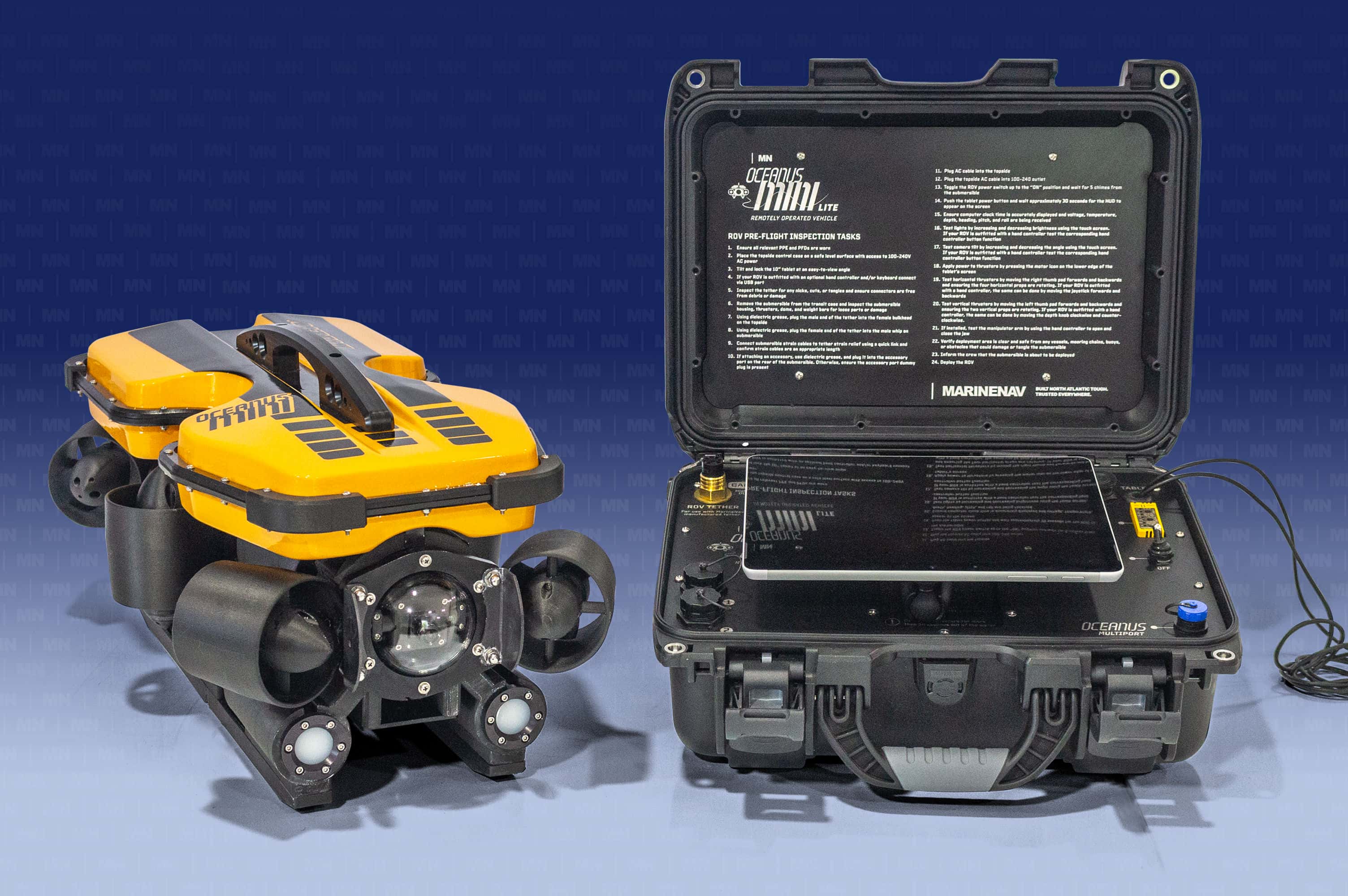

Mission ready ROV systems delivered in IP rated hardshell cases. Connect system in minutes and easily deployed by a single person

Portable, mission-ready ROVs that can be set up and deployed within minutes by a single person.

Fully assembled ROV system components are delivered in portable, waterproof cases easily wheeled or carried by a single individual. Connection of ROV components to easily identifiable connection ports and quick computer boot-up sequence minimizes set-up time for ROV deployment.

Your ROV system includes comprehensive operator manuals that will have you familiarized with, and flying your MarineNav ROV quickly.

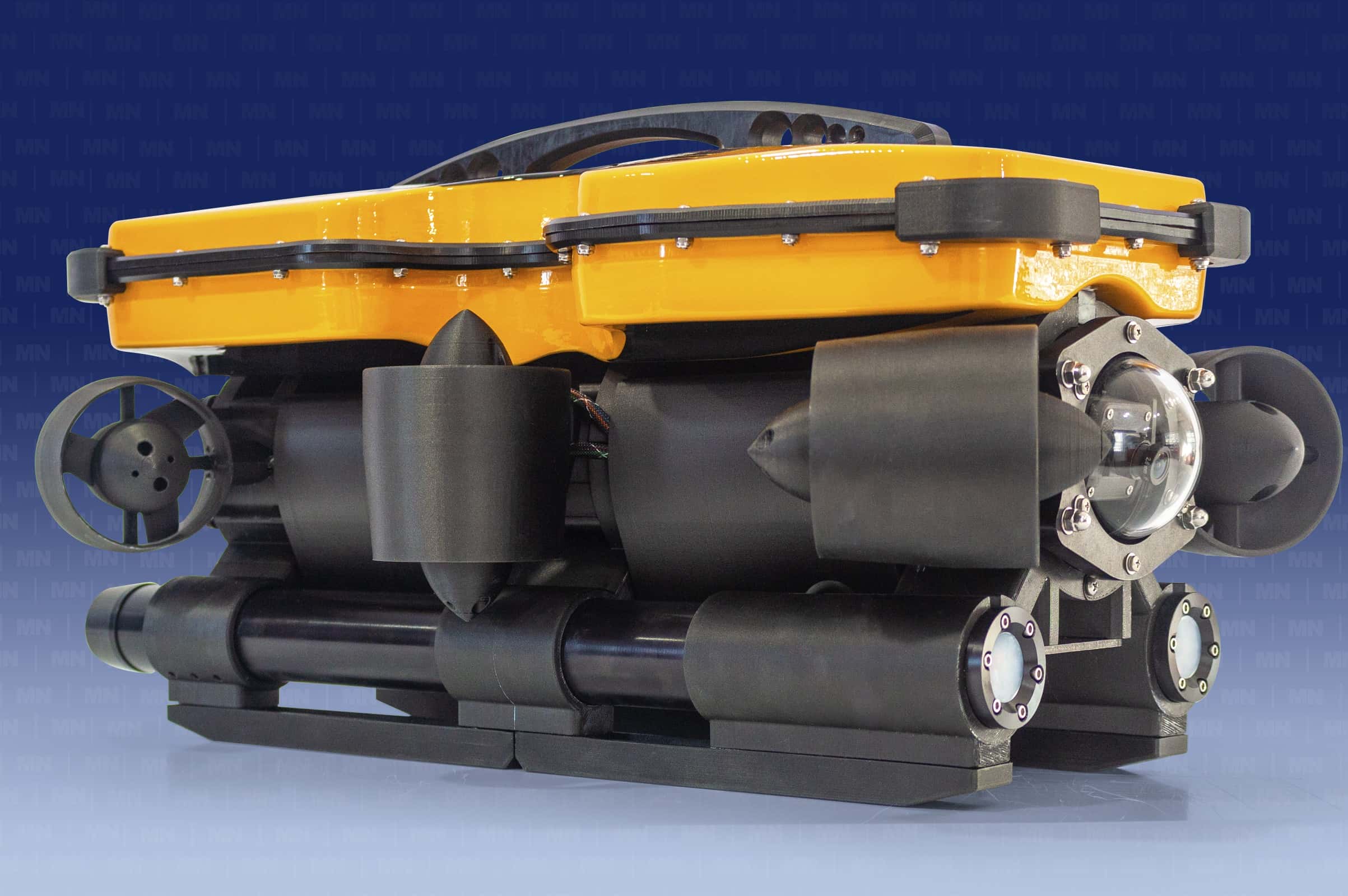

ROV chassis is manufactured from anodized metal. Independently certified to a depth of 300m.

We incorporate proven marine-grade materials and components in all our ROV systems, including metalwork fabricated on-site from machine-milled marine-grade aluminum, protected by an anodized finish. Rigorous testing of all ROV components ensures our ROV systems withstand extensive use in the harshest conditions. MarineNav ROV systems are independently certified to a minimum standard depth of 300m.

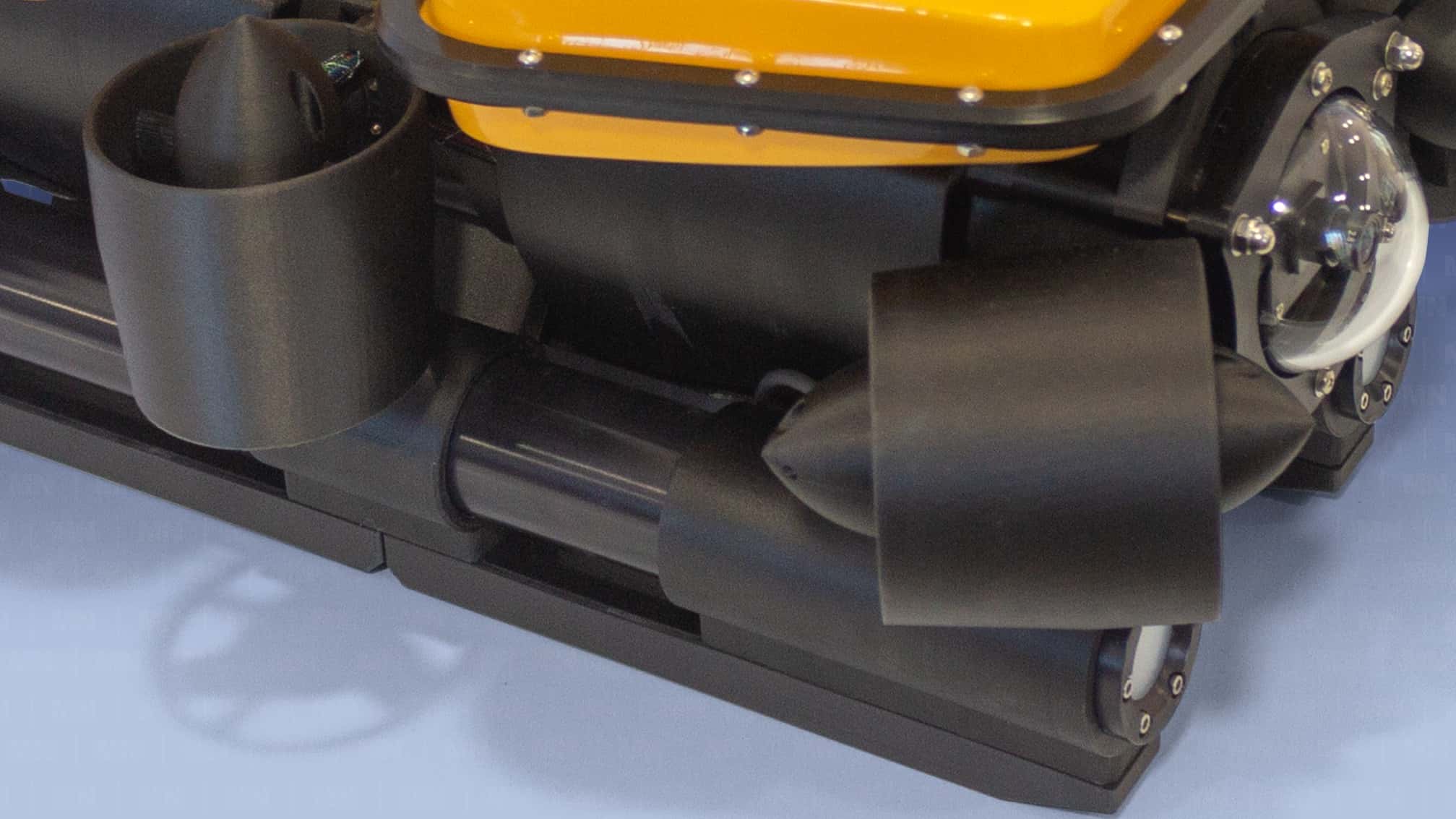

Thrusters 3D printed carbon fibre construction. Vectorized thrusters design. ROV power to spare

3D printed carbon fibre and vectorized thruster design generate power to spare.

Six powerful vectorized thruster engines generate ROV speeds up to 4 knots, Oceanus ROV systems provide top-of-class speed and lift capabilities, and lateral axis ROV movement is standard.

3-D printed carbon fibre thruster assemblies are extremely durable, especially in ice-cold water. Unlike typical plastic thrusters, our thrusters withstand drops, dirt, scrapes, and bumps.

Power over tether design.

MarineNav ROV tether provides communications, streaming video and a pair of independent auxiliary conductors for compatible ROV accessory use with no noticeable electrical interruption or video lag tested to tether lengths of 500 meters. MarineNav neutrally buoyant ROV tether is made from regionally sourced and fabricated components and is available as measured or custom-cut tether lengths.

Pair your ROV tether with a MarineNav tether deployment system. Our tether deployment reels can accommodate tether lengths measuring up to 600 meters.

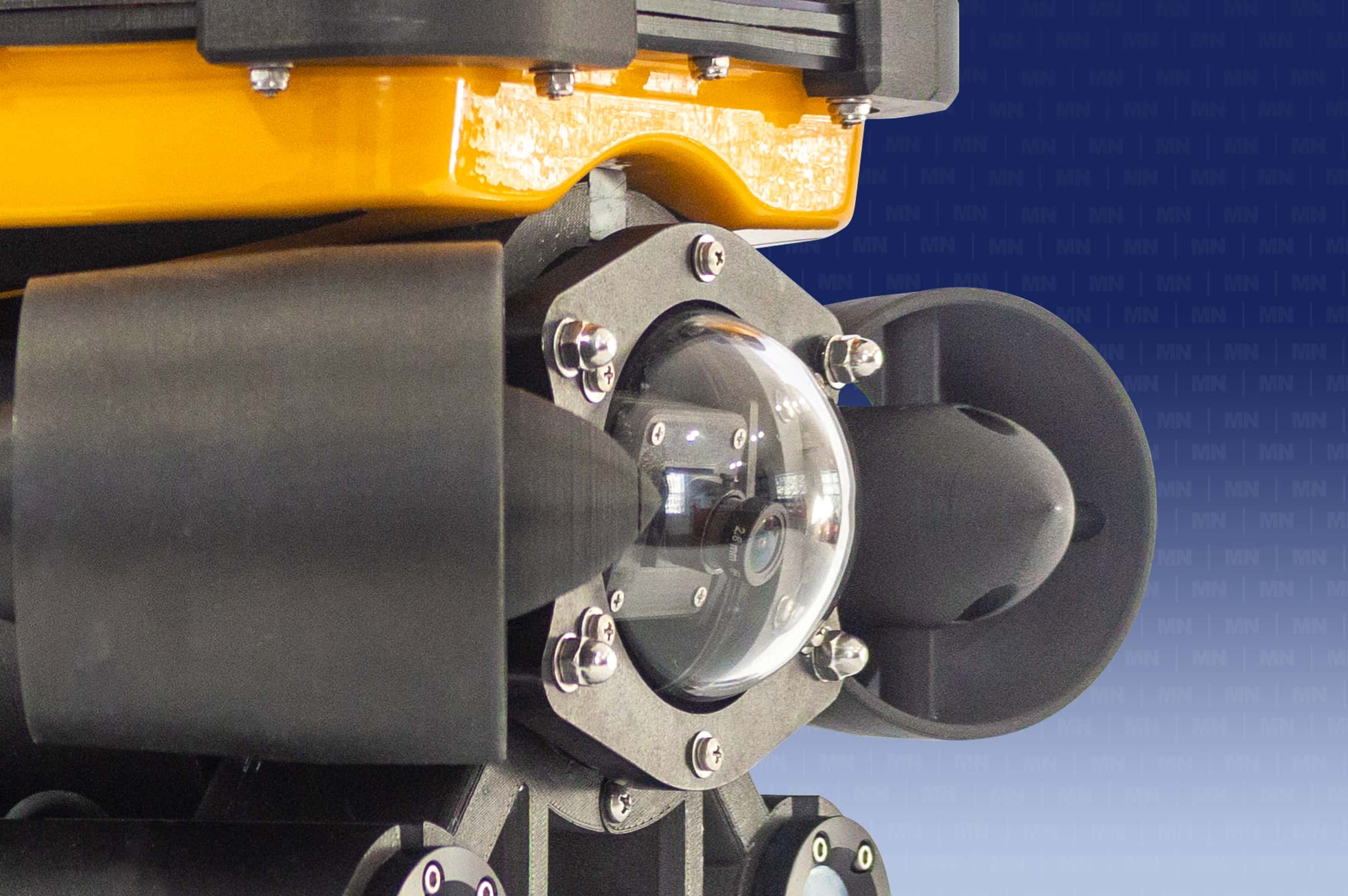

Streaming 1080P HD video feed. +/- 120° tilt camera gimbal

Streaming 1080P HD video feed.
+/- 160° tilt camera gimbal.

Protected by side bumpers and a resilient acrylic front-facing dome, MarineNav’s 1080P high-definition camera captures real-time streaming video and stunning still images. A redesigned camera gimbal system enables +/- 160° tilt control and a 120° field of view via the ROV systems onboard front camera system.

Streaming video is viewed on the Topside Control Case’s built-in removable 10" Windows Touch tablet.

Rugged topside ROV control hub. Touch-sensitive software.

Flying an Oceanus ROV is easy, even with no previous experience, when using integrated Flight Control System (FCS) software. Intuitive touch-sensitive proprietary FCS software viewed on a dedicated 10" touch-sensitive tablet display enables pilots to access crucial ROV data modules, allowing changes to ROVs on the fly. And with the optional upgrade, to an Oceanus hand-held controller and tablet mount bracket, flying your ROV while accessing crucial ROV settings on the fly makes piloting a breeze.

Increase ROV functionality with MarineNav designed, and third-party ROV attachments.

MarineNav produces a range of ROV accessories designed to perform task-specific functions crucial to the success of your dive mission. Our in-house design team will work with you to develop a bespoke attachment for your required need.

MarineNav ROV systems are compatible with many popular third-party brand ROV attachments. Contact us for information regarding third-party ROV accessories or any proprietary MarineNav ROV attachments.

International sales and support provided by an extensive network of authorized distributors.

MarineNav products are available through an authorized distribution network across five continents. A growing number of international sales and support staff ensures help is available when you need it, wherever you may be.

Additional features include

STANDARD DEPTH RATING OF 305m (1000 ft).
The Oceanus Mini-Lite ROV is independently certified to a depth of 305m (1000ft).
MAXIMUM SPEED OF 4 KNOTS
Maximum speed test conducted with ROV fitted with performance float block and absence of all ballast weights.
ROV DRY WEIGHT OF 10.8 kg (23.8 Lb)
Compact design and reduced footprint equate to a lightweight ROV. ROV ballast weights are not included as part of the ROV dry weight.
LATERAL AXIS ROV MOVEMENT
An unparalleled control system and superior thruster performance deliver fully vectorized ROV maneuverability.
1080P HD VIDEO
A high-definition camera with +/- 160° tilt functionality provides stunning image captures.
ONE ROV AUX PORT
Capable of 1 x RS485/Manipulator/12V DC.
TWO 1500 LUMEN FRONT LIGHTS
Two front-facing ROV lights with incremental brightness controlled using the topside Flight Control System software. Upgrading to an optional handheld joystick controller allows incremental adjustments to light brightness via a command button array.
FLEXIBLE ATTACHMENT OPTIONS
The Oceanus Mini-Lite ROV is compatible with the Oceanus Mini/Pro topside control system and many RS485 ROV accessories.

PORTABLE IP-RATED TOPSIDE ROV CONTROL CASE
With an exterior measurement of 401.3mm/15.8" (L) x 307.3mm/12.1" (W) x 172.7mm/6.8" (H) and weighing 7.39 kg (16.3 Lb) the IP-rated topside case functions as the operational hub of the Oceanus Mini-Lite ROV system.
64GB SOLID-STATE DRIVE TOPSIDE TABLET
The device stores hours of content. Remove the PC tablet from the topside control case swing arm and download data to other devices.
TOUCH-SENSITIVE USER INTERFACE
Touch-sensitive commands that display all ROV controls in a series of clear, easily viewed modules. Touch to engage function, enlarge module for precise function adjustment.
BUILT-IN WIRELESS COMMUNICATION
Wireless communication between the PC tablet and the topside case to a maximum range of 20m.
OCEANUS MULTIPORT
Our Oceanus Multiport communication system allows rapid integration of third-party accessories, software and external processors.
COMPATIBLE WITH OCEANUS JOYSTICK HAND-HELD CONTROLLER
Control crucial ROV functions with a MarineNav Oceanus joystick hand-held controller by connecting the hand controller to one of the available USB ports in the Oceanus Mini-Lite topside case. (the v3.0 hand-held controller with mounting bracket is available as an optional ROV system upgrade).
NEUTRALLY BUOYANT TETHER
Neutrally buoyant tether lengths are available to a maximum of 500m length upon request. (Purchased as a separate ROV accessory. Contract MarineNav for options and pricing).

Terms and conditions

* MarineNav’s Oceanus Mini-Lite ROV topside control case is protected by a one-year limited warranty. MarineNav's Mini ROV included as part of the Oceanus Mini-Lite ROV system, is protected by a two-year limited warranty and is available upon registering your MarineNav ROV system within the first year of purchase. The third-party tablet included as part of the Oceanus Mini-Lite ROV system has its warranty as outlined by the third-party manufacturer. Some restrictions apply;

a) MarineNav Ltd warrants that tether supplied with ROV systems or supplied separately will be free from defects in materials and workmanship under normal use and service for a period of ninety (90) days from the date of shipment.

b) MarineNav Ltd warrants that tether whips provided as part of an ROV system at the time of original shipment will be free from defects in materials and workmanship under normal use and service for a period of six (6) months from the date of shipment.

c) MarineNav Ltd warrants that thruster motors that were provided as part of an ROV system at the time of original shipment will be free from defects in materials and workmanship under normal use and service for a period of one (1) year from the date of shipment. This does not include wearable parts such as propellers, which are considered consumable items. Tampering, misuse and regular wear are not covered by warranties.

d) MarineNav Ltd warrants that the ROV float block as part of an ROV system at the time of original shipment will be free from defects in materials and workmanship under normal use and service for a period of three (3) months. The three-month warranty does not cover normal wear such as scuffs, scrapes indentations, or other damage to the float block caused by external environmental factors.

e) MarineNav Ltd warranties exclude corrosion that may occur on ROV metallic parts caused in part by improper cleaning and storage of ROV after each mission. Refer to your owner’s manual for proper cleaning and maintenance of your ROV system.

f) MarineNav‘s ROV 2-year limited warranty does not extend to the topside control case or third-party manufactured PC tablet.

× While we strive to ensure the accuracy of all items and descriptions in this document, this is not always possible. Specifications, options, pricing and availability are subject to change without notice. Errors and omissions excepted. We reserve the right to limit quantities.

Oceanus mini-lite rov system

starting at $19,995 usd
