Oceanus PRO CLASSIC rov system

Designed for deep dive missions, the Oceanus Pro Classic is our most popular ROV system. It’s favoured by commercial industry and government agencies for its rugged durability, customization options and overall value.

starting at $39,594 usd

Manufactured Retail Sales Price

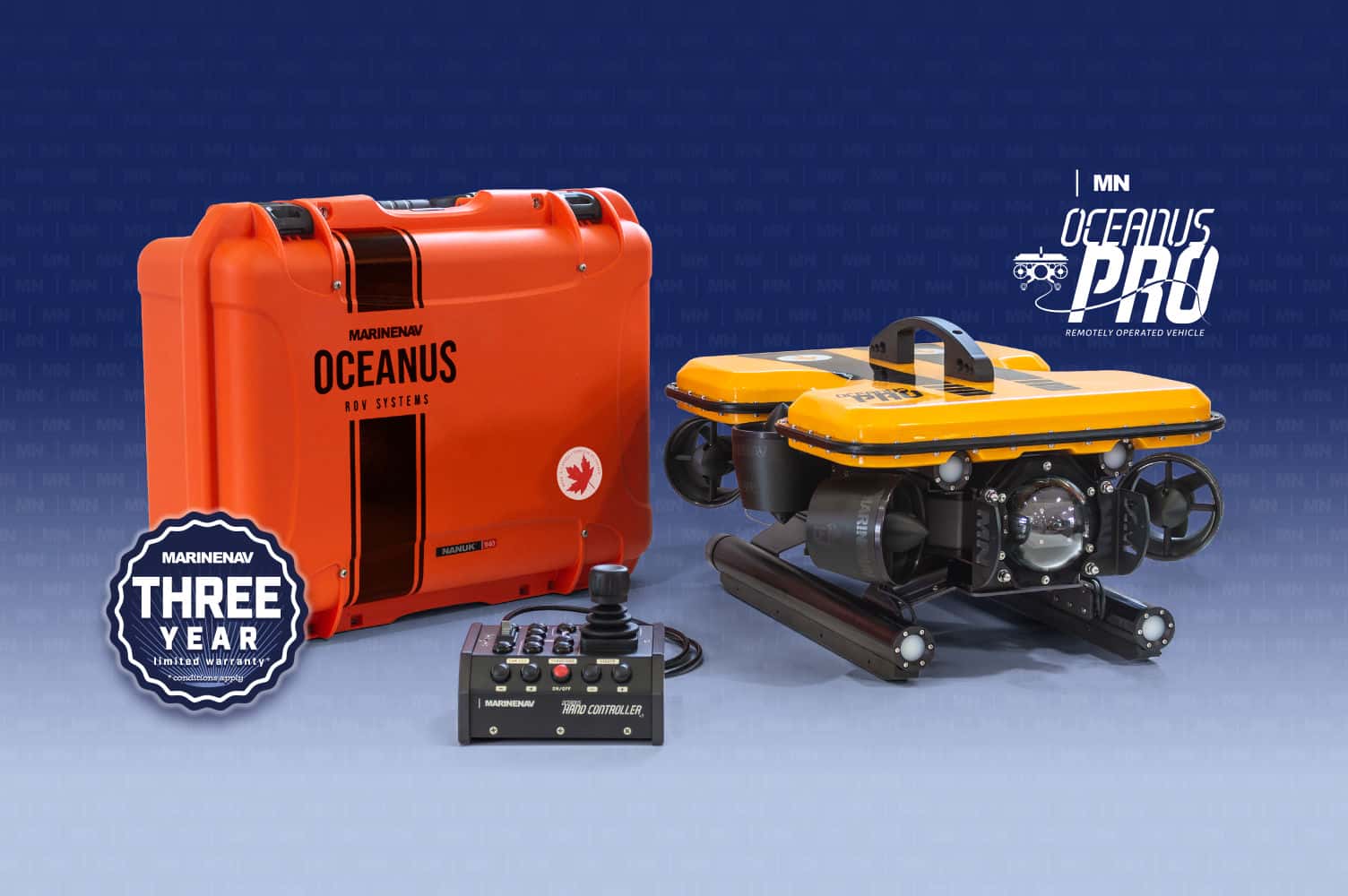

MarineNav’s Oceanus Pro Classic ROV system includes the following:

• Oceanus Pro Classic ROV
• Oceanus Mini/Pro ROV topside control system
• Proprietary ROV Flight Control System software
• Oceanus joystick/hand-held controller (v3.0)
• A multi-function wireless keyboard
• 26-ballast weight bolts and nuts
• AC power cable and IP65 HDMI cable
• Spare fasteners kit
• IP-rated rugged hard-shell transport cases
• Operator manual and support documentation
• MarineNav's 3-year limited warranty*

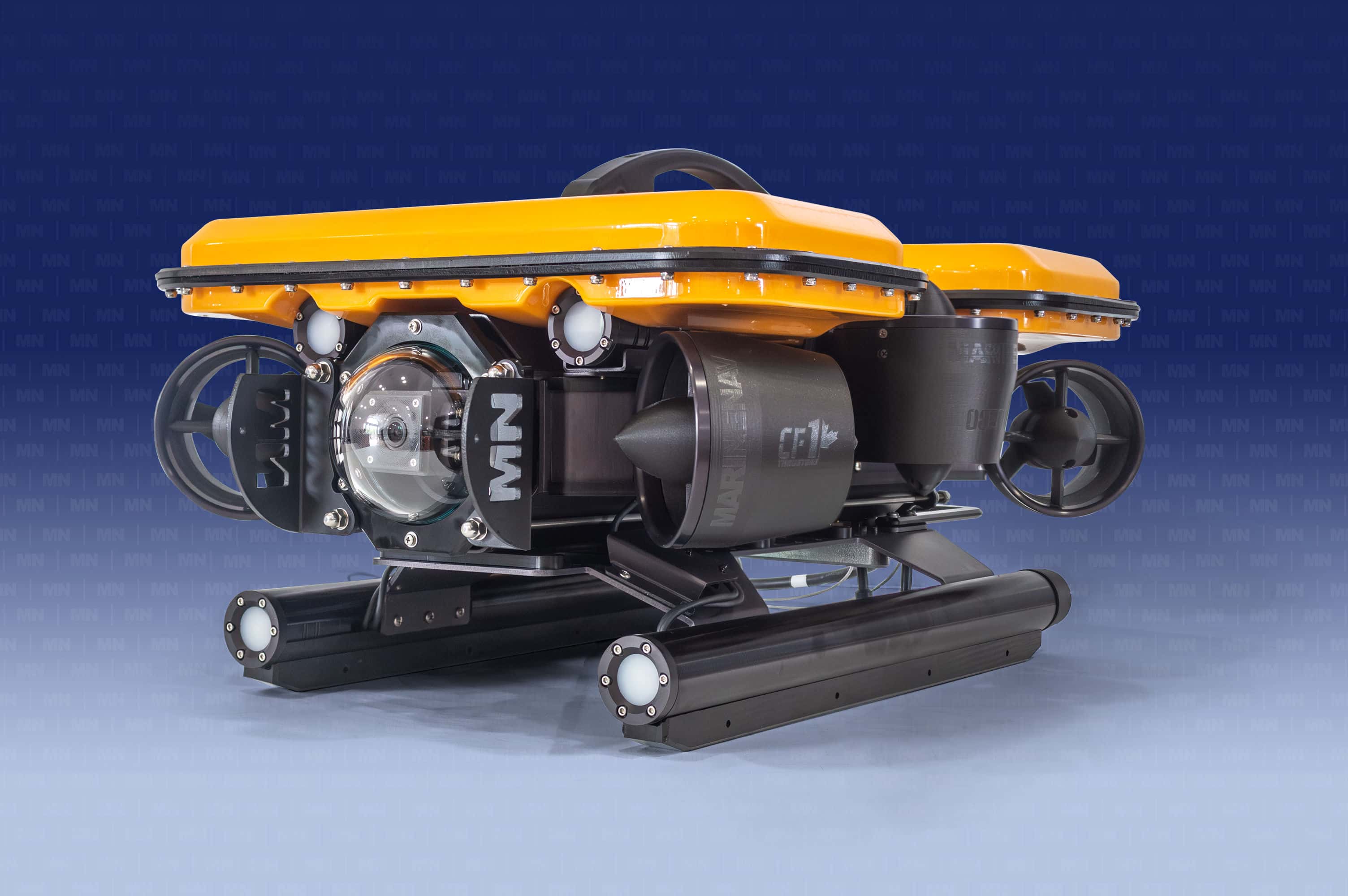

Mission-ready with a wide range of available attachment options

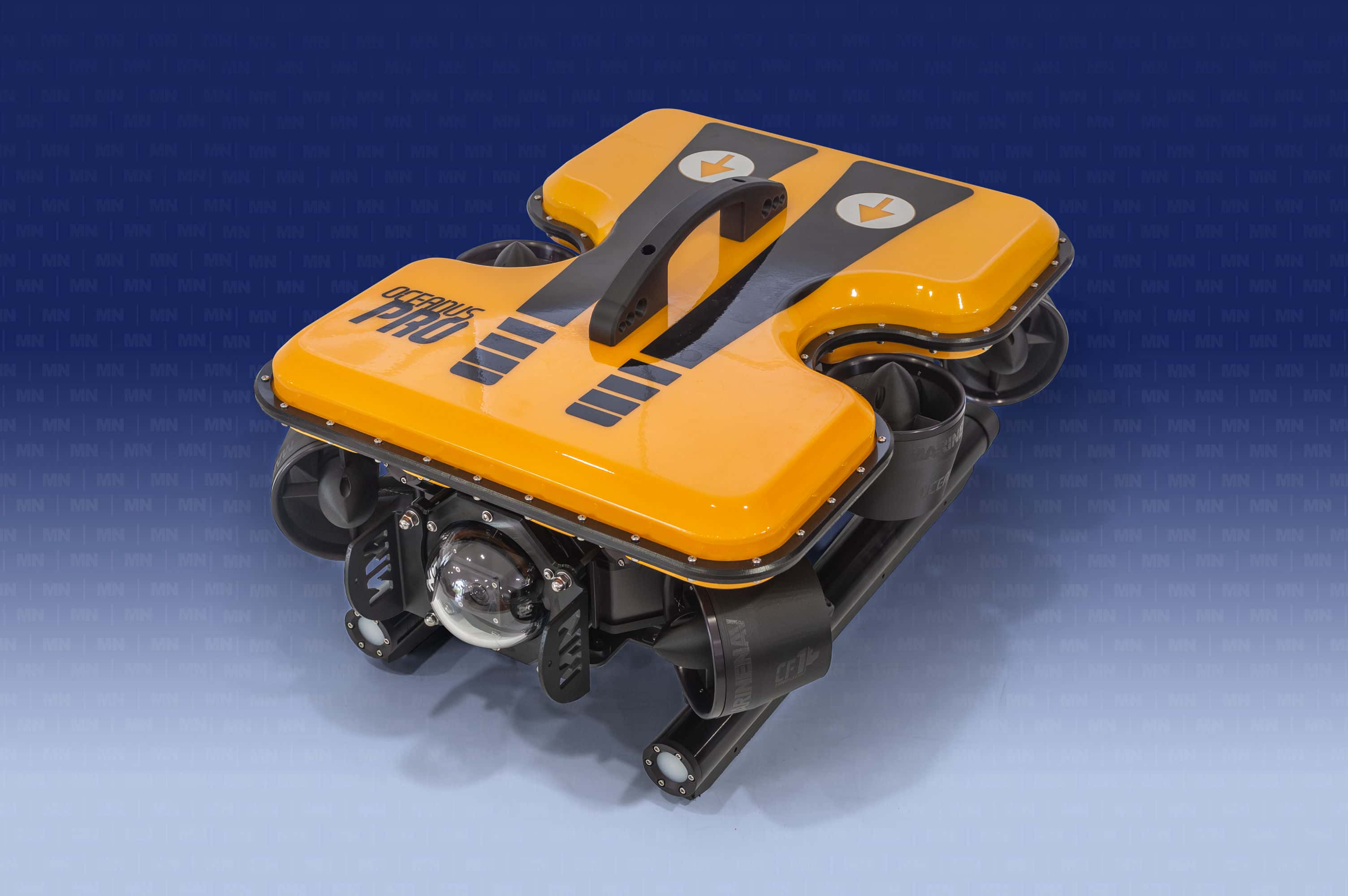

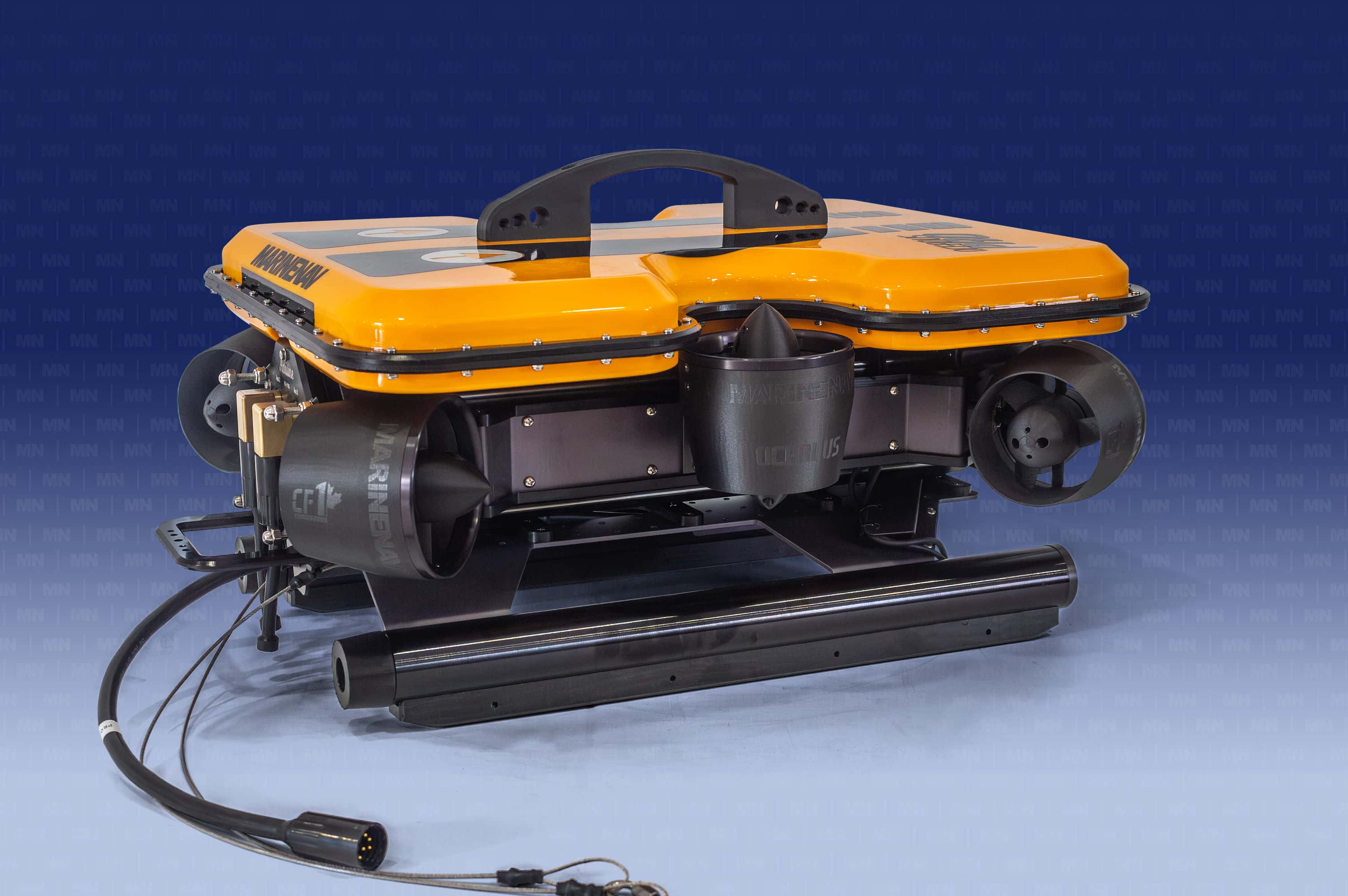

Designed, engineered, and manufactured on-site, MarineNav’s Oceanus Pro Classic ROV weighs only 17.91 kg (39.5 Lb) and measures 605 mm (23.82") in length. It features a rugged core construction of marine-grade anodized aluminum and other marine-grade components. The ROV is easily deployed and operated by one person and can be flown in fresh or salt water, in temperatures ranging from 0-50°C (32-122°F). The Oceanus Pro Classic has been independently certified to operate to a maximum standard depth of 400 m (1312 ft). Repeated dives to depths of 400m (1312 ft) require an optional system upgrade.≠

Six vectorized thrusters provide powerful thrust performance delivering top speeds of up to 5 knots with the ROV capable of vertical depth and horizontal lateral movement (auto depth, heading hold, and ROV stabilize modes are standard features). A full HD 1080p internal front camera with camera tilt of +/- 180° pitch (vertical rotation), a one-touch video record function with overlay feature, and four front-facing 1500 Lumen lights ensure the ability to capture brilliant video without interruption of piloting the ROV system.

MarineNav’s Oceanus Pro Classic ROV system includes these features

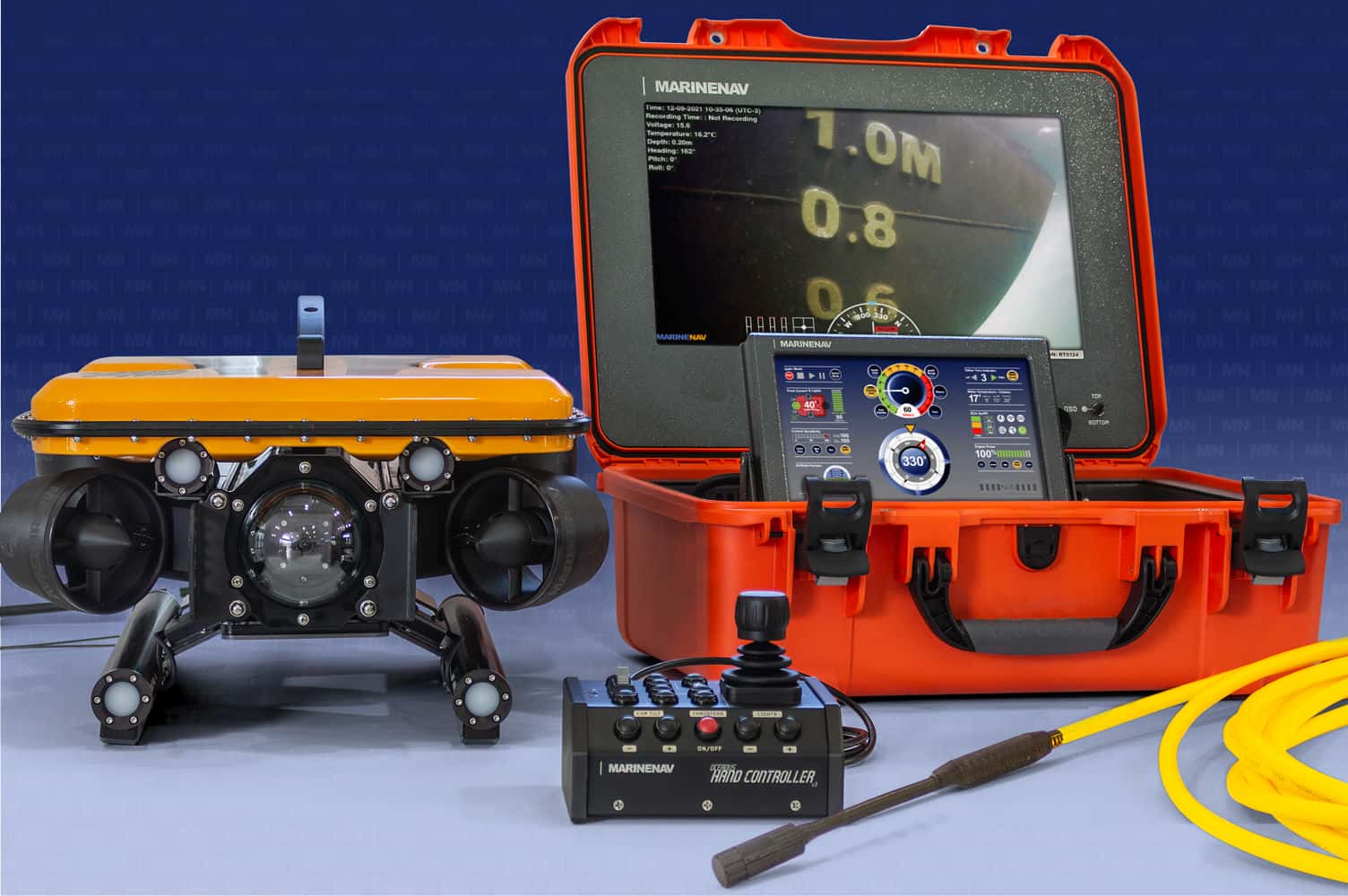

Portable, mission-ready ROVs that can be set up and deployed within minutes by a single person.
Portable, mission-ready ROVs that can be set up and deployed within minutes by a single person.

Fully assembled ROV system components are delivered in portable, waterproof cases easily wheeled or carried by a single individual. Connection of ROV components to easily identifiable connection ports and quick computer boot-up sequence minimizes set-up time for ROV deployment.

ROV System includes comprehensive operator manuals that will have you familiarized with and flying your MarineNav ROV quickly.

ROV chassis is manufactured from anodized metal components and other marine-grade materials.
ROV chassis is manufactured from anodized metal. Independently certified.

We incorporate proven marine-grade materials and components in all our ROV systems, including metalwork fabricated on-site from machine-milled marine-grade aluminum, protected by an anodized finish. Rigorous testing of all ROV components ensures our ROV systems withstand extensive use in the harshest conditions. The MarineNav Oceanus Pro Classic ROV system is independently certified to a standard depth of 400 meters.

Rugged carbon fibre construction. Vectorized thrusters design. ROV power to spare.
Vectorized carbon fibre thruster design generates power to spare.

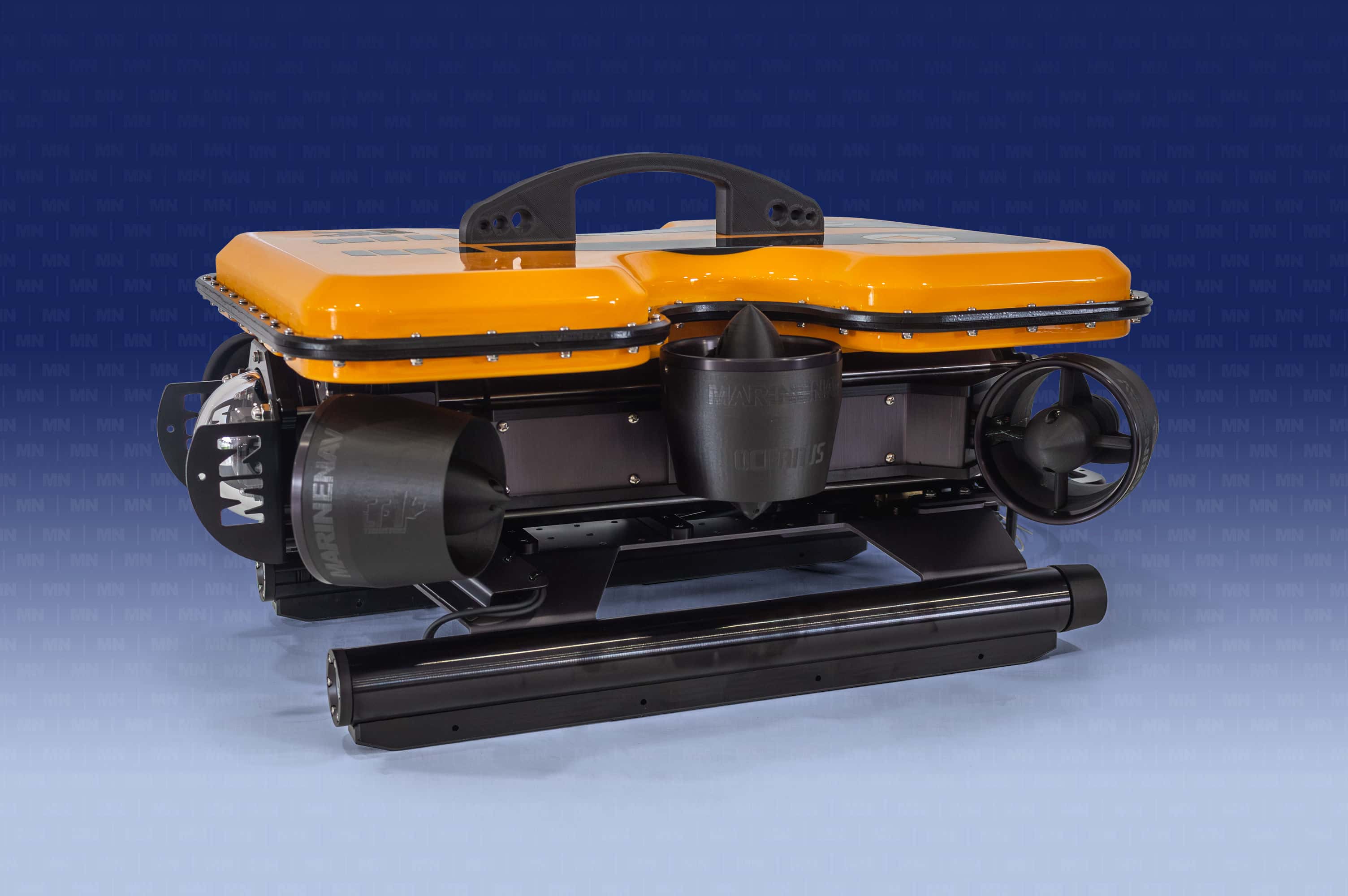

Six powerful vectorized thruster engines generate ROV speeds up to 5 knots, Oceanus ROV systems provide top-of-class speed and lift capabilities, and lateral axis ROV movement is standard.

3-D printed carbon fibre thruster assemblies are extremely durable, especially in ice-cold water. Unlike typical plastic thrusters, our thrusters withstand drops, dirt, scrapes, and bumps.

Power over tether design.
Power over tether design.

MarineNav ROV tether provides communications, streaming video and a pair of independent auxiliary conductors for compatible ROV accessory use with no noticeable electrical interruption or video lag tested to tether lengths of 500 meters. MarineNav neutrally buoyant ROV tether is made from regionally sourced and fabricated components and is available as measured or custom-cut tether lengths.

Pair your ROV tether with a MarineNav Tether Deployment system. Our tether deployment reels can accommodate tether lengths measuring up to 600 meters.

Streaming 1080P HD video feed. Full +/- 180° tilt camera gimbal.
Streaming 1080P HD video feed.
Full +/- 180° tilt camera gimbal.

Protected by side bumpers and a resilient acrylic front-facing dome, MarineNav's 1080P high-definition camera captures real-time streaming video and stunning still images. A redesigned camera gimbal system enables +/- 180° vertical tilt control and a 120° field of view via the ROV systems onboard front camera system.

Streaming video is viewed on the Topside Control Case's 18.5" TFT active matrix widescreen video display, while the HDMI out port allows for connection to another HD display.

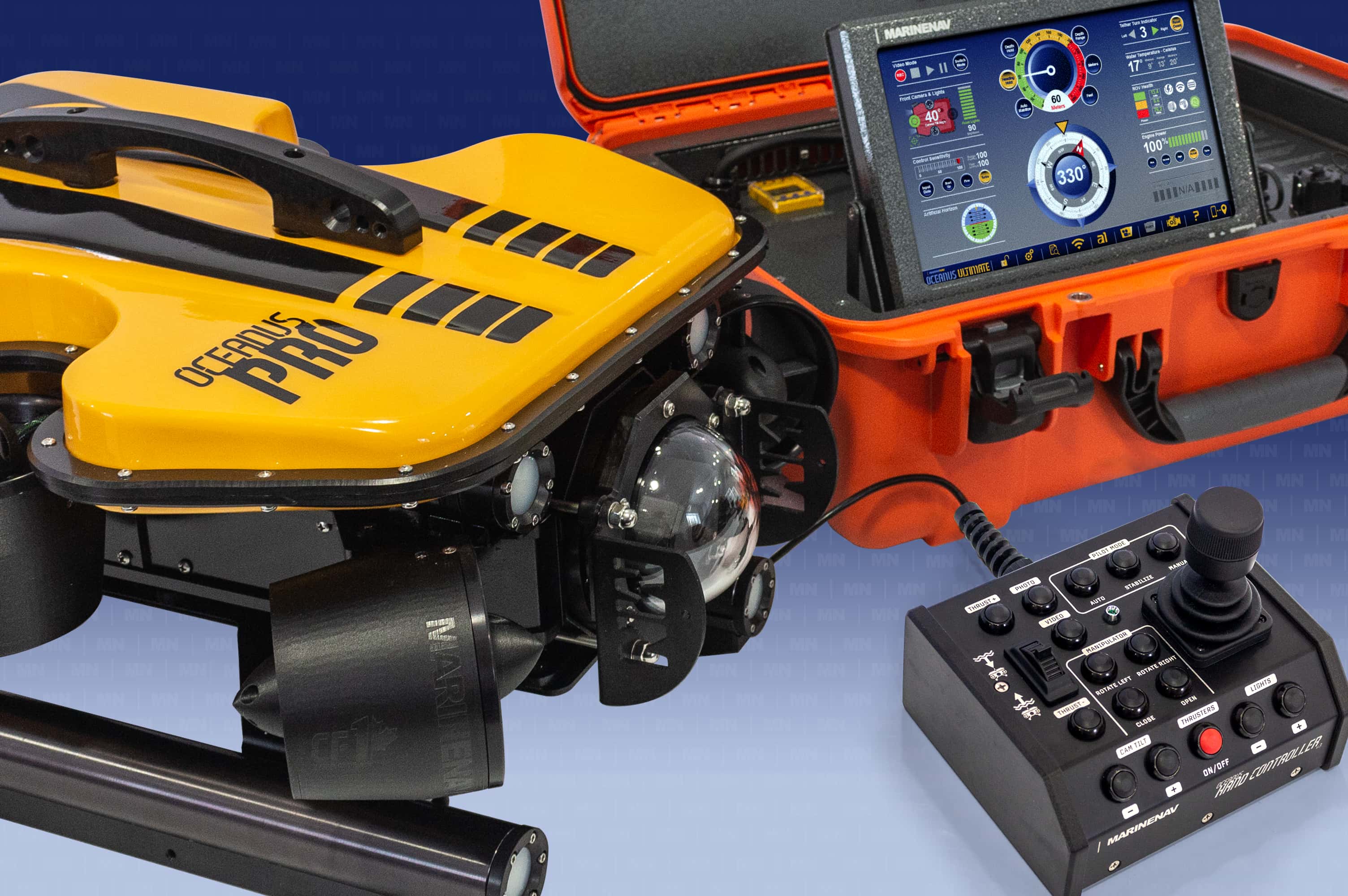

Responsive ROV hand controllers. Rugged topside ROV control hub. Touch-sensitive software.
Responsive hand-held ROV controllers. Rugged topside ROV control hub. Touch-sensitive software.

Flying an Oceanus ROV is easy, even with no previous experience, when using our ROV hand-held controllers and integrated Flight Control System (FCS) software. A hand-held Hall-effect joystick controller provides precise ROV piloting and access to many ROV functions, while intuitive touch-sensitive proprietary FCS software viewed on a dedicated 10.1" touch-sensitive topside display enables pilots to access crucial ROV data modules, allowing changes to ROVs on the fly.

Increase ROV functionality with MarineNav designed, and third-party ROV attachments.
Increased ROV functionality with MarineNav designed, and third-party ROV attachments.

MarineNav produces a range of ROV accessories designed to perform task-specific functions crucial to the success of your dive mission. Our in-house design team will work with you to develop a bespoke attachment for your required need.

MarineNav ROV systems are compatible with many popular third-party brand ROV attachments. Contact us for information regarding third-party ROV accessories or any proprietary MarineNav ROV attachments.

International sales and support are provided by an extensive network of authorized distributors.
International sales and support are provided by an extensive network of authorized distributors.

MarineNav products are available through an authorized distribution network spanning five continents. A growing number of international sales and support staff ensures help is available when you need it, wherever you may be.

Additional features include

  • STANDARD DEPTH RATING OF OF 400m (1312 ft).
    The Oceanus Pro Classic ROV is independently certified to a depth of 400m (1312ft). Repeated dives to depths beyond 300m require an optional system upgrade.≠
  • MAXIMUM SPEED OF 5 KNOTS
    Maximum speed test performed with the ROV fitted with an optional performance float block. (ROV ballast weights and accessories were not included when the ROV speed test was conducted).
  • ROV DRY WEIGHT OF 17.91 kg (39.5 Lb)
    Dry weight does not include the ROV ballast weights, the tether whip, the ROV tether and any ROV accessory.
  • LATERAL AXIS ROV MOVEMENT
    An unparalleled control system and superior thruster performance deliver fully vectorized ROV maneuverability, control ROV depth, horizontal and lateral movement. ROV flight controls include auto-depth, heading hold and ROV stabilize modes.
  • 1080P HD VIDEO
    A high-definition camera with +/- 180° tilt functionality provides stunning image captures. 120° field of view and camera focus range from the face of the housing dome to infinity with manual control.

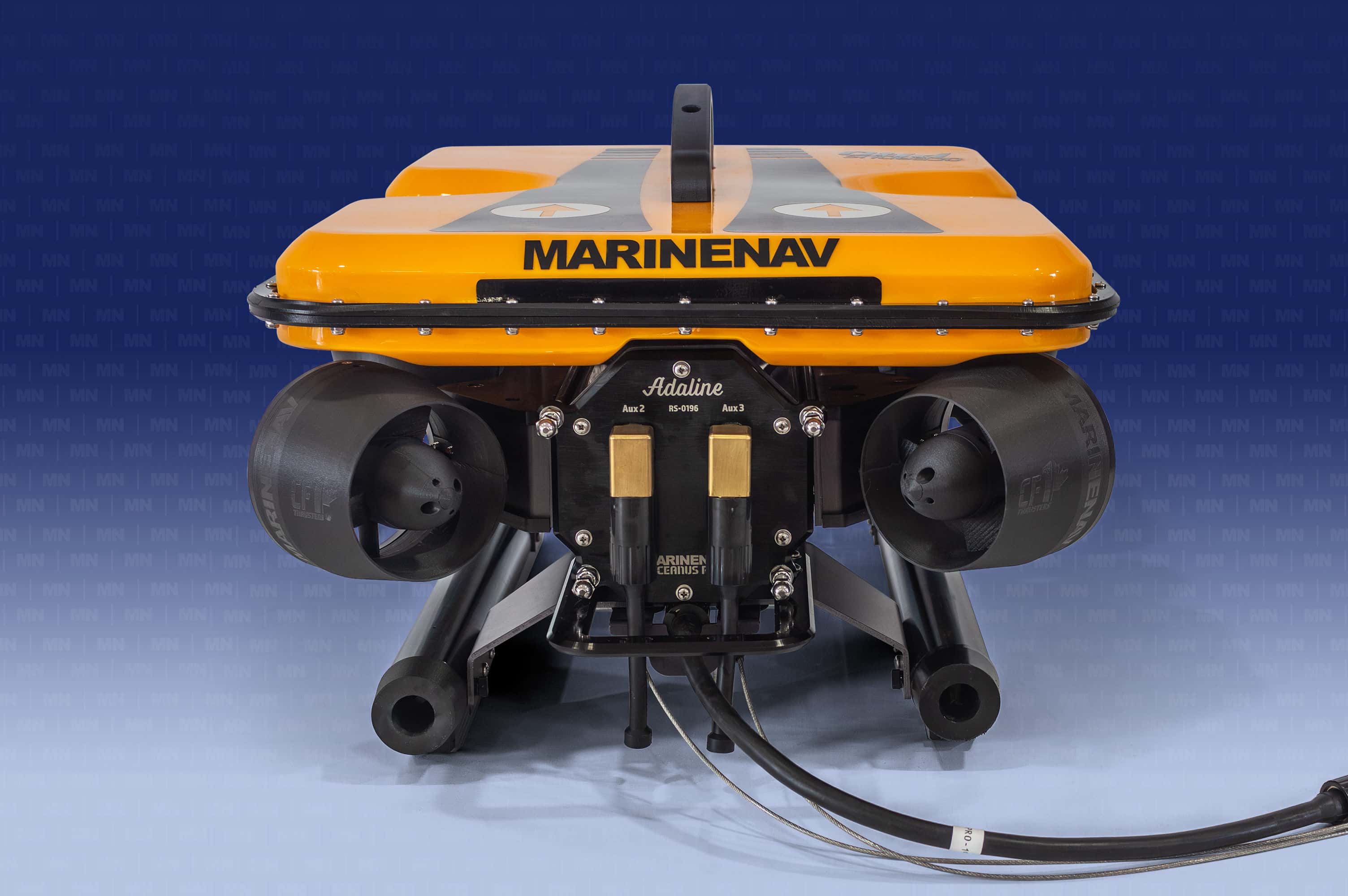

  • FOUR ROV AUX PORTS
    Capable of Ethernet/12VDC/24VDC/Manipulator
    Optional available system upgrades
    - Optional dedicated DVL port
    - Optional external camera port

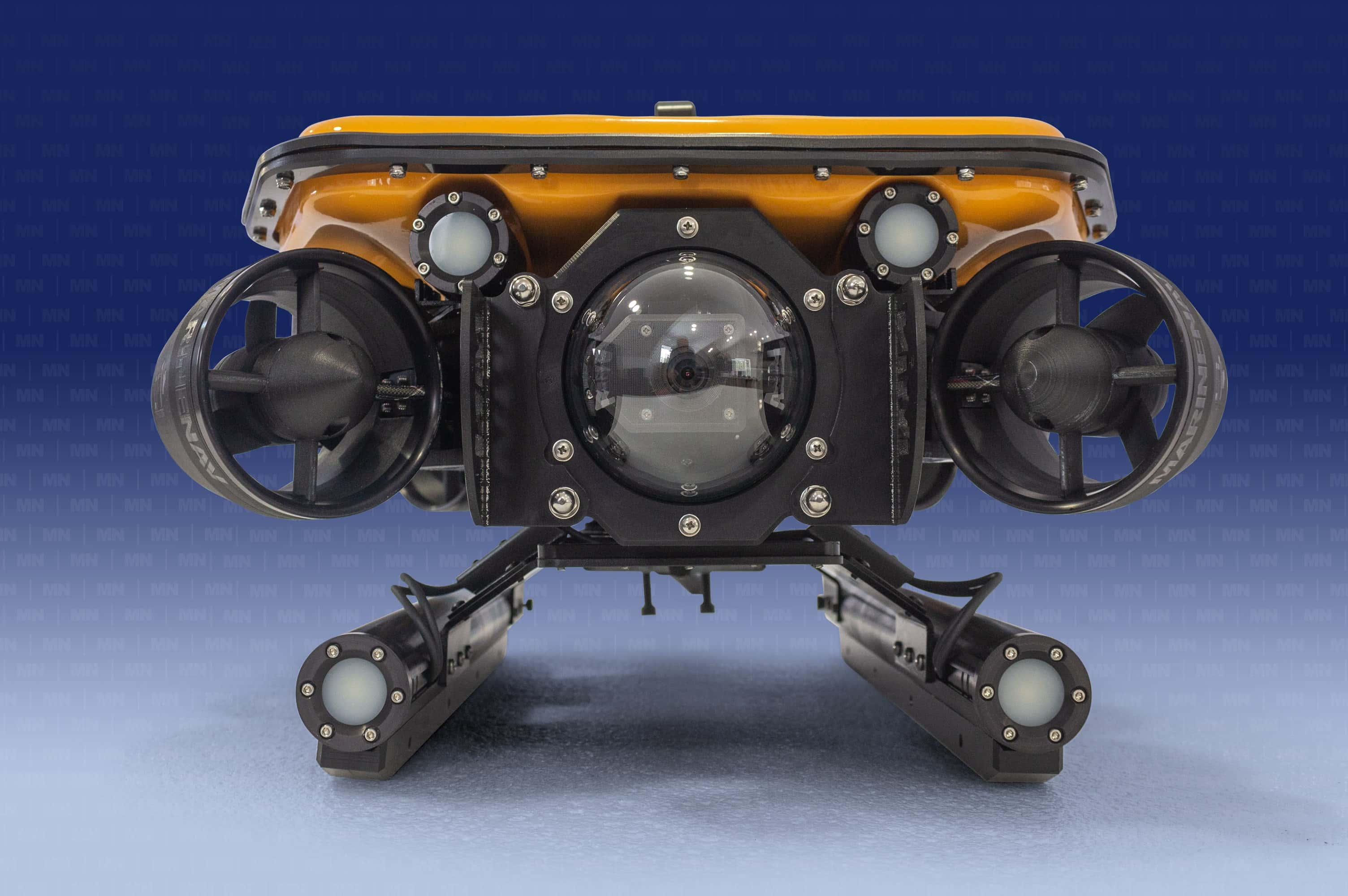

  • FOUR  1500 LUMEN FRONT LIGHTS
    Four front-facing ROV lights with phased brightness control when using topside Flight Control System software or with button commands through the Oceanus joystick/hand-held controller (v3.0).

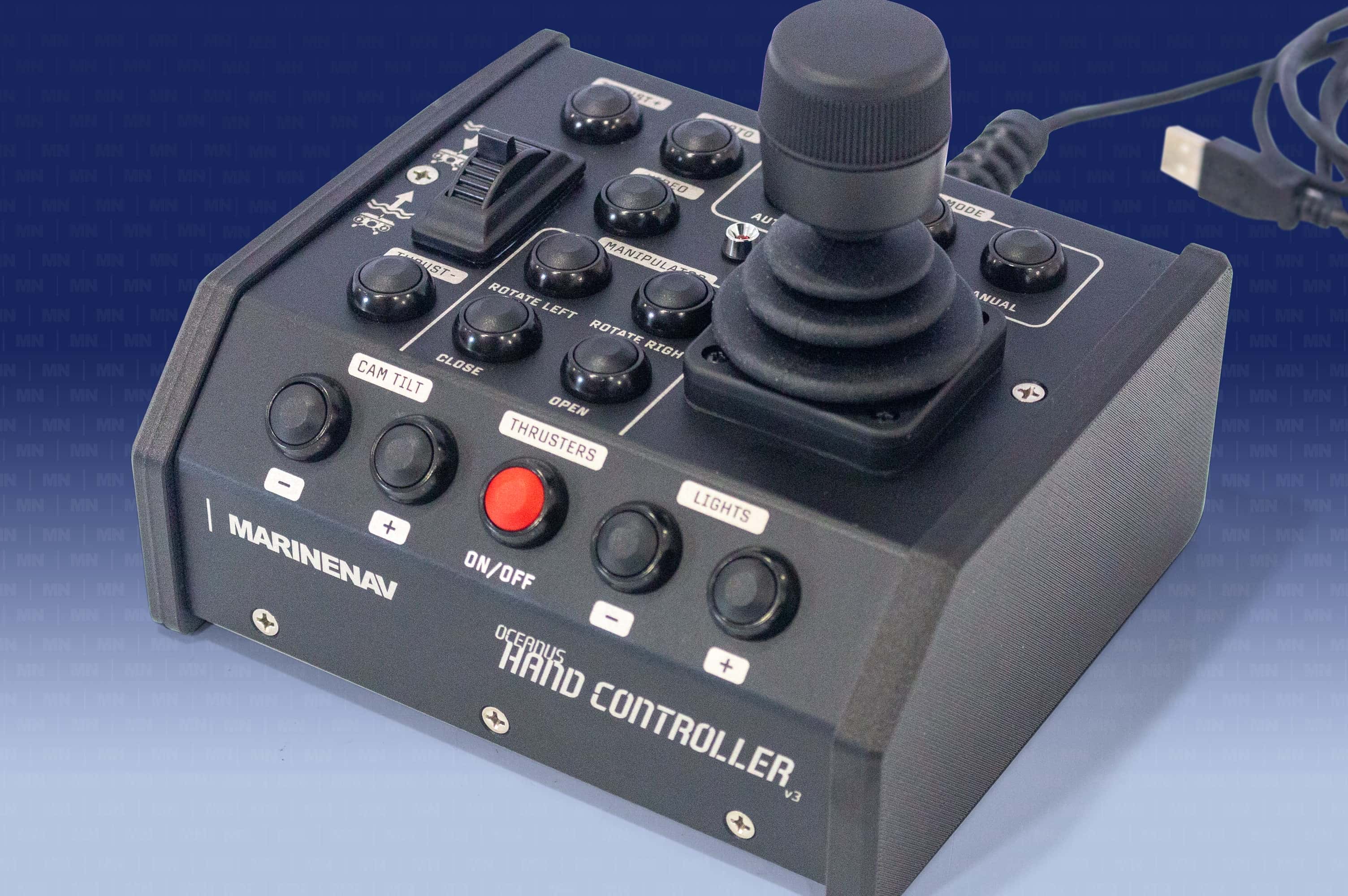

  • OCEANUS JOYSTICK/HAND-HELD CONTROLLER (v3.0)
    Manufactured from marine-grade aluminum, the joystick/hand-held controller features 16 integrated function keys, a conveniently positioned thumbwheel and a hall-effect joystick that controls essential ROV functions.
  • SETTINGS
    Internally saved, persist through power cycles.
  • FLEXIBLE ATTACHMENT OPTIONS
    The Oceanus Pro Classic ROV has three built-in auxiliary ports to work with a wide range of MarineNav and third-party ROV accessories. (1 x ethernet, 2 x RS485/Manipulator/12V/24 DC/aux camera).

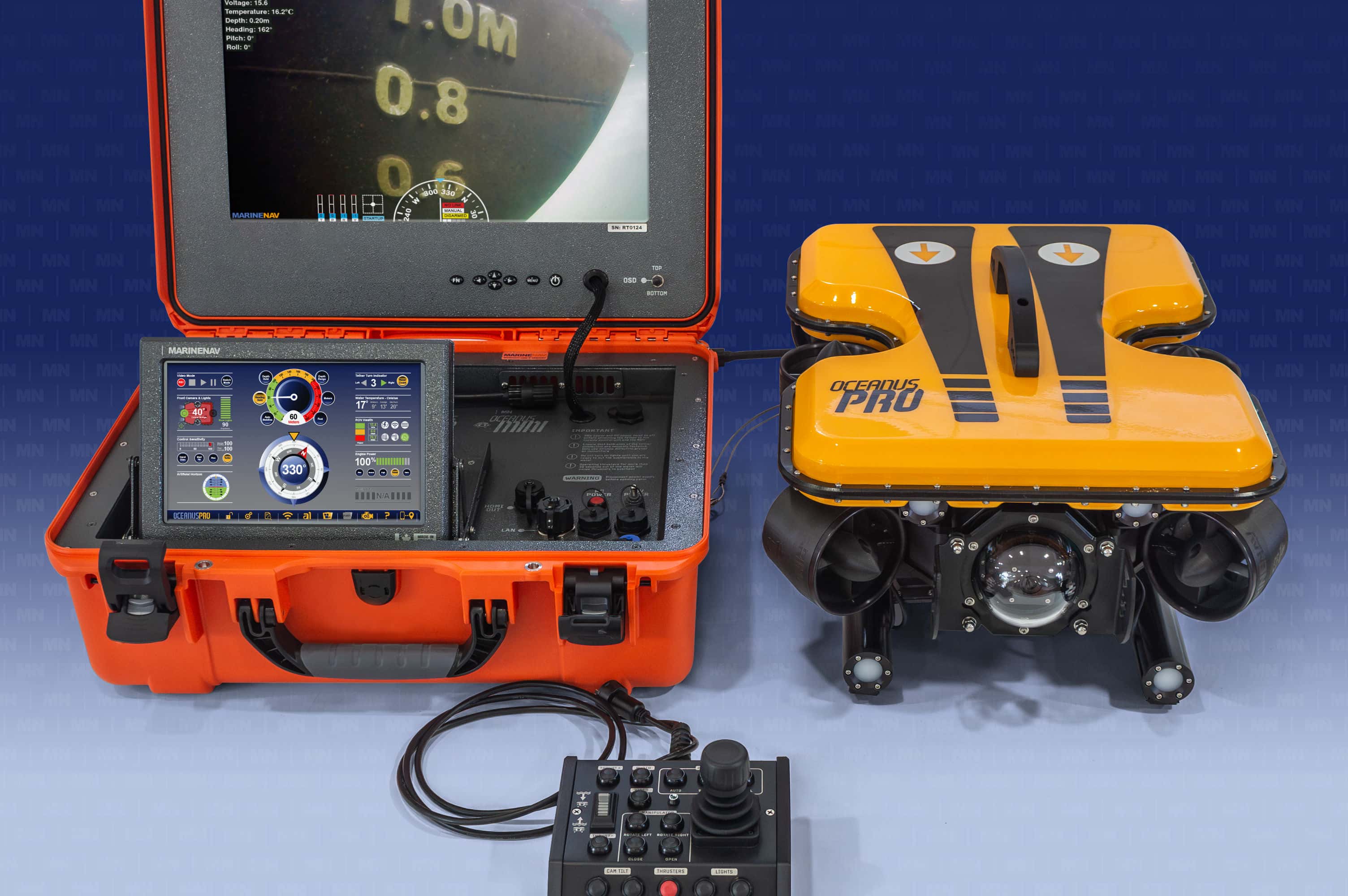

  • PORTABLE IP-RATED TOPSIDE ROV CONTROL CASE
    With an exterior measurement of 508mm/20.0" (L) x 355.6mm/14.0" (W) x 203.2mm/8.0" (H) and weighing 19.41 kg (42.8 Lb) the IP-rated topside case functions as the operational hub of the Oceanus Pro Classic ROV system.
  • WIDE-SCREEN VIDEO DISPLAY
    18.5" TFT active matrix panel, 1600 nits brightness (full daylight readable), 1024 x 786 resolution.
  • INDUSTRIAL COMPUTER AND 1TB SOLID-STATE DRIVE TOPSIDE
    The topside control case features an i7 industrial computer and a large built-in 1TB SSD which stores hours of content.
  • TOUCH-SENSITIVE USER INTERFACE
    Our proprietary Flight Control System software user interface is a touch-sensitive array of command modules that display all essential ROV functions on a secondary 10.1-inch TFT touch active matrix panel (1000 nits brightness, full daylight readable, 1280 x 800 resolution).
  • ON-SCREEN DISPLAY (OSD)
    Real-time data includes recording time, voltage, water temperature, depth, and date/time stamp. Heading and attitude are overlaid or embedded with video. Custom user input lines are available. When paired with an accessory, GPS coordinates are displayed as an overlay option, with an enabled data entry field. The addition of a customized logo is available as an optional upgrade.
  • OCEANUS MULTIPORT
    Our Oceanus Multiport communication system allows rapid integration of third-party accessories, software and external processors.
  • HDMI VIDEO OUTPUT
    Share streaming data captured by the ROV onboard camera to an external HD monitor by conveniently connecting via the topside HDMI video out port.
  • WIRELESS BROADCASTING FEATURE
    ROV pilot can share streaming video to multiple parties with access to web-enabled devices via a simple built-in interface.
  • OPTIONAL MARINENAV FLEET MANAGEMENT SUITE
    Monitor the status and health of the ROV remotely for complete asset management of one or multiple systems.
  • COMPREHENSIVE COVERAGE
    MarineNav’s Peace of Mind Guarantee and 3-year limited warranty provide extended coverage on your purchase.*

≠ While possible to dive to a maximum depth of up to 400m using an ROV system outfitted with a standard ROV float block, repeated dive missions beyond 300m will shorten its lifespan and may lead to eventual float block failure. MarineNav requires users to upgrade their ROV with an optional Deep Water Buoyancy ROV float block for repeated deep dive missions exceeding 300m. Contact MarineNav for product details and pricing >

unique trial offers

MarineNav’s Oceanus ROV systems provide the rugged durability customers demand from ROV systems. We’re confident our Oceanus ROVs outperform competitors’ same-class ROVs and extend the following trial offers to first-time customers and potential distributors considering the purchase of an Oceanus Pro Classic ROV system.

The 5 or 5 trial offer available to first-time customers

MarineNav provides first-time customers with a one-time offer of five-day or five operational hours trial period of the Oceanus Pro Classic ROV system. Not satisfied with your ROV? Return your purchased ROV system within the trial period for a full refund.▲

Restrictions apply. Download the 5 or 5 trial offer pdf, or contact a MarineNav authorized dealer for details.

The 10 or 10 trial offer available to potential distributors

Potential dealers/distributors receive a one-time offer of ten days or ten hours to try our Oceanus Pro Classic ROV system. At the end of the trial offer, either return the ROV or issue a purchase order within the 30-day term and receive a 25% discount off the listed dealer price.▼

 Restrictions apply. Download the 10 or 10 trial offer pdf, or contact MarineNav for details.

MarineNav Designed, Engineered and Manufactured In-House, In Canada
Outfit your Oceanus Pro with a wide selection of MarineNav and third-party accessories.

increase productivity with a selection of rOV accessories

MarineNav designs and manufactures a range of ROV accessories that include manipulator arms, cutting tools, ROV hull crawlers, and external camera systems and custom mounting brackets. We can design and manufacture bespoke accessories for your individual needs. Contact MarineNav for a list of ROV accessories you can use with your Oceanus Pro-Classic ROV system.

Terms and conditions

* The three-year limited warranty extension is available when an eligible MarineNav Oceanus ROV system is registered within the first year of purchase. For the warranty to remain valid, all scheduled ROV maintenance must be completed as outlined by the manufacturer’s guidelines. At the end of the regular two-year limited warranty period, a third-year extension is provided to customers who adhere to all regimented ROV maintenance. Limited warranty restrictions apply;

a) MarineNav Ltd warrants that tether supplied with ROV systems or supplied separately will be free from defects in materials and workmanship under normal use and service for a period of ninety (90) days from the date of shipment.

b)  MarineNav Ltd warrants that tether whips that were provided as part of an ROV system at time of original shipment will be free from defects in materials and workmanship under normal use and service for a period of six (6) months from date of shipment.

c) MarineNav Ltd warrants that thruster motors that were provided as part of an ROV system at the time of original shipment will be free from defects in materials and workmanship under normal use and service for a period of one (1) year from the date of shipment. This does not include wearable parts such as propellers, which are considered a consumable item. Tampering, misuse and regular wear are not covered by warranties.

d) MarineNav Ltd warrants that the ROV float block as part of an ROV system at the time of original shipment will be free from defects in materials and workmanship under normal use and service for a period of three (3) months. The three-month warranty does not cover normal wear such as scuffs, scrapes indentations, or other damage to the float block caused by external environmental factors.

e) MarineNav Ltd warranties exclude corrosion that may occur on ROV metallic parts caused in part by improper cleaning and storage of ROV after each mission. Refer to your owner’s manual for proper cleaning and maintenance of your ROV system.

× While we strive to ensure the accuracy of all items and descriptions in this document, this is not always possible. Specifications, options, pricing and availability are subject to change without notice. Errors and omissions excepted. We reserve the right to limit quantities.
